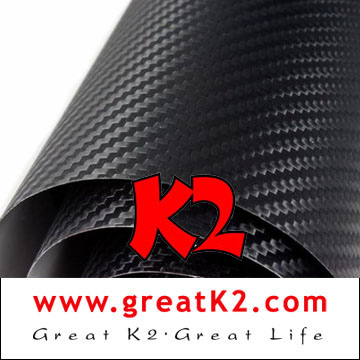

3D Carbon Fiber, Brand Name : K2

1. Product description：
CF01 are series of decorative self adhesive films which are used three-dimensional
textured vinyl that reflects light the same way as real carbon fiber parts to imitate the real
carbon fiber effect. It is comprised of color textured vinyl with clear permanent adhesive
and PE coating silicon release paper.
 Advantage
 Has a look like real carbon fiber bonnet and hard-top
 Available in 7 different colors (Part 8: Color chart)
 Soft stretchable film with strong adhesive, good ability for uneven and arched
surface
 Easy to stick and remove
 Outdoor waterproof and Anti-UV ability, can be cleaned by water
 Applied on most common car paints, plastic and metal surface
Specification:
Vinyl thickness Liner Width Length
150 micron 140g/m2 PE coating paper 1.27 / 1.52m 50m
2. Use area
 Interior/exterior surfaces of car, truck etc
 The back of laptop and cell phone
 Other flat paint, plastic, metal, acrylic board surface
3. Limitation
This type is not recommended for the following applications:
 The surfaces of substrates are dirty, solvent cleaned, grease, silicon coating which
affect the adhesion of the glue.
 Lacquered or painted surfaces freshly
Great K2 Industry Co., Ltd R & D Center
- 2 -
4. Temperature ranges
Minimum application temperature > 10°C
Service temperature range - 20°C to~ 75°C
5. Shelf life:
1 year in material's original packaging, storage temperature of 15-22 deg C, relative
humidity of 50～55%.
6. Durability:
2 years life. But it also depends on printing method and ink. Correct substrate
preparation and maintenance of vinyl will enhance durability.
7. Technical data
Composition Textured color vinyl
Thickness with glue 150 Film micron
Shrinkage after application ＜1%
Adhesive Type Transparent Solvent, pressure sensitive
Removable ability Permanent
Thickness 0.02±0.003 mm
Adhesive
180 degree Peel (24hr) 560N/m
Type PE coating silicon paper
Weight 140g/m2
Release force 30g
Liner
SA rate >75%
8. Color chart
Black White Gold Silver Blue Red Dark Red
CF01B CF01W CF01G CF01S CF01L CF01R CF01D
Notice：The purchaser should carefully consider the suitability and performance of the product for each intended use,
and the purchaser shall assume all risks regarding such use. The seller shall not be liable for damages in excess of the
purchase price of the product nor for incidental or consequential damages. All published document is based on our R &D
center careful research and test work.
