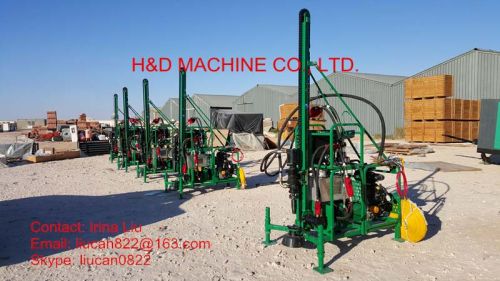

3d Seismic Shot Hole Drilling Rig

Features:
1. This drilling rig is applicable to work in mountain, loess, hill, plain, forest, gobi, seasonal farmland for seismic prospecting, mine survey, geologic framework investigation etc such drilling project.
2. Drilling method includes air drilling, dth hammer drilling, mud drilling(option), auger drilling and casing drilling (with casing puller). Adapt to different drilling operation with relative drilling method. Max drilling depth is 40 meters.
3. Self-adaption system to stratum shortens handle regulating time of driller, improves drilling efficiency and ensure perpendicularity of the hole.
4. We design and use dth hammer with interconvertible high-low frequency according to situation of single using dth hammer (low frequency, big impacting energy) in prospecting drilling project nowadays. Choose high frequency matching parts of dth hammer to improve drilling frequency when soft formation as f≤8.
5. Use lithium battery with big capacity to reduce weight at max limit.
6. New design of power swivel that circulation drilling fluid and bearing chamber are separate reduces damage probability of bearing.
Configuration:
this drilling rig uses the modular design, disassembling fast, convenient and reliable. It includes engine, console platform, the mast assy., the power swivel, the aerodynamic system, the drilling tool and other appendices.
Main specification:
drilling method depth pipe（dia.*len.）
(mm) drilling bit
mud drilling 40 m φ60×1500 7590mm
air drilling 40 m φ60×1500 7582mm
auger drilling 20 m φ50×φ90×1500 90mm
casing drilling 30 m ф108×ф60×1500mm 110mm
