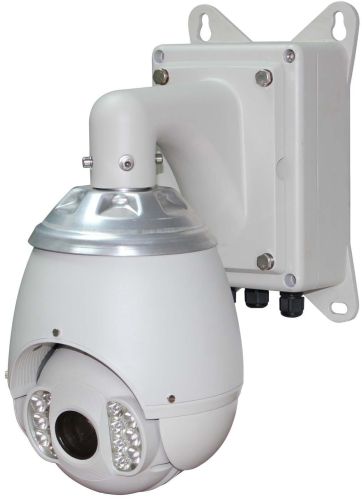

3G Ptz High Speed Dome Camera, Brand Name : WENHUA

We are offering 3g Ptz High Speed Dome Camera.
Main features:
Model: WH_D1TGVN_HSD
1. Using H.264 video and G.711G.726 audio compression technologies; rn2. Support 3G Mobile network WCDMA or CDMA EVDO;rn3. 470 TVL progressive scan SONY CCD, 520 TVL can be optional;rn4. Support Pantilt: 360°90°, 0.1-200°s (Pan controlled), 200°s (Pan preset speed); 0.1-90°s (Tilt controlled), 90°s (Tilt preset speed). 18 times Optical zooming, focal length: 4mm-72mm;rn5. Support 4 patrols, 128 preset points; rn6. Support IR night vision 120meters;rn7. Video image stable and without shaking when rotating in high speed;rn8. Support two-way voice monitoring, one-way voice broadcasting and two-way talkback; rn9. Support comprehensive video recording mode (complete video recording, programming video recording, sensor video recording, dynamic detection video recording, emergency manual video recording, alarm video recording, etc.);rn10. Can download the video files and playback them remotely through the network;rn11. Support Motion detection, LOS (lose of signal) alarm, video blocking alarm, disconnection alarm and network linkage alarm (optional);rn12. Support local wireless remote control to arm and disarm;rn13. Support heartbeat function to keep the device work regularly and steady;rn14. Support OSD overlay and watermark technology;rn15. Support multi-level user management function and user name, password encryption function;rn16. Built-in programmable system module to support butt joint with various large monitoring platforms.
Parts Items WH_D1TGVN_HSD
Camera Image Sensor 13" SONY Super HAD CCDrn Resolution 470TVL, 520TVL is optionalrn PAL:704×576,704×288,352×288,176×144,640×480,320×240,160×112 (D1,H-D1,CIF,QCIF,VGA,QVGA,QQVGA) rnNTSC：640×480,320×240,160×112 VGA,QVGA,QQVGA)
Max frame rate PAL: 25 framesecond, NTSC: 30 framesecond, frame rate adjustablernCompression format Video Compression format H.264
rnNetwork Network Protocol TCP, UDP, FTP, TFTP, HTTP, DHCP, etc.
Communication interface 1 RJ45，10100M self-adaptable Ethernet interfacern 3G Network WCDMA,EVDO are optional HSPA: 5.76(UL)7.2(DL)Mbps CDMA EVDO: DL 3.1 MbpsUL 1.8Mbps
Trigger Mode Video recording Trigger Mode Complete video recording, programming video recording, sensor video recording, dynamic detection video recording, emergency manual video recording, alarm video recording, etc.rnAlarm Motion detection Support motion detection,
Other alarm Support tampering alarm, LOS (lose of signal) alarm, video blocking alarm, disconnection alarm and network linkage alarm(optional)
Alarm trigger action Support video local storage, video transmitting, picture snapshot and sending email when alarmrnStorage interface Local storage Support SDSDHC, SD card max. up to16G
PTZ PanTilt PanTilt : 360° 90 ° rn0.1-200°s (Pan controlled), 200°s (Pan preset speed)rn0.1-90°s (Tilt controlled), 90°s (Tilt preset speed)
Zooming 18 times Optical zooming, Focal length: 4mm-72mmrn Preset Support 4 patrols, 128 preset points
Others Night vision Support night vision 120metersrn Operating Condition TVS 3000V lightning protection, Surge protection, Support waterproof rating IP66rn Power Supply DC12V 5A±10%
Power Consumption Max:35W
