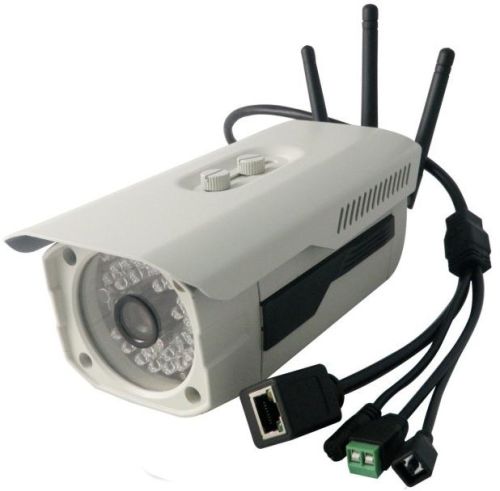

3G Video Outdoor IP Camera, Brand Name : WENHUA

We are offering 3g video outdoor ip camera.
Product overview
it’s a real 3g network camera, supports both 3g mobile video phone monitoring and 3g traffic way internet monitoring. It supports the wcdma, td-scdma and evdo standards.
the system provides the internet video surveillance software package that includes the windows pc version camera centralized control software, android phonetablet version client application, iphone ipad version client application and flash-based camera centralized control web application.
The system supports the independent sub-stream 720p video recording. It supports maximum 32gb internal tf card storage. It supports 24-hours video recording, scheduled video recording, manual video recording, alarm video recording, video record searching, video record preview and video record download. The video record is stored as the standard avi file.
The system supports the 3g hotspot function. The 3g bandwidth can be shared by other wifi devices when the wifi ap mode is enabled.
Main features:
for 3g mobile video phone monitoring functions including:
1. Call screening, up to set six license phone number automatically turn on when the permit number calls videophone
2. Videophone monitoring to ensure that the real-time monitoring of video transmission, content, more privacy, more smoother, sharper video. Mobile video source integration technology, simply a 3g sim card can operate all the cameras in the lan via video phone.
3. Support for simultaneous voice intercom
4. Through dynamic video prompts and dtmf input control, and manipulation capabilities of 3g mobile phone, including ptz control, zoom, switching cameras, patrol mirror, video
5. Mobile phone motion detection arm disarm
for 3g traffic internet monitoring functions including:
1. Automatic dial-up access to the internet, users can access the camera remotely via the internet
2. Client remote login camera, video surveillance, monitoring, ptz control, zoom, switch camera, patrol mirror, video and other operating
3. Using h.264 video encoding, support for vga, qvga, 720p resolution
4. Using the amr speech codec
5. Bandwidth adaptive rate algorithm automatically control the monitor image quality
alarm function including:
1. The motion detection alarm function, user can set the sensitivity
2. Optional with infrared, door sensor, smoke detector, gas flu, on the radio, and emergency button alarm accessories
3. Videophone alarm turn to the preset alarm phone number to call back, can be set up to six alarm number
4. Send alarm sms, sms alarm to preset numbers can be set up to three alarms number
5. Take the initiative to connect the alarm platform to upload video in video alarm platform
6. Front-end video, built-in sd card can be viewed remotely via phone or client
web configuration management functions including:
1. A built-in http server to support web password login
2. View equipment operating status: system information, the 3g network (3g operators, network type, registration status, imei code, signal strength, sim card status, a dial-up connection online status, ip address, gateway address, dns address traffic statistics), alarm settings (fortification disarm state, the state of motion detection settings, the sensor connection status, alarm status parameter of the alarm center, videophone, sms alarm status, alarm recording parameters number), ethernet (mac address, address type, ip address, subnet mask, gateway address, dns addresses, internet connection status), video source (lens type, bit rate, frame rate, resolution, osd status), the audio source (audio source type (mic line-in), audio capture status, audio output status).
3. Configure the device parameters: ethernet configuration 3g network configuration, video settings, audio settings, ptz, motion detection settings, alarm settings, system time set
4. Management functions: modify the login password, restore the factory default configuration, log query
5. Video window function: view real-time video, voice intercom, ptz control, alarm
