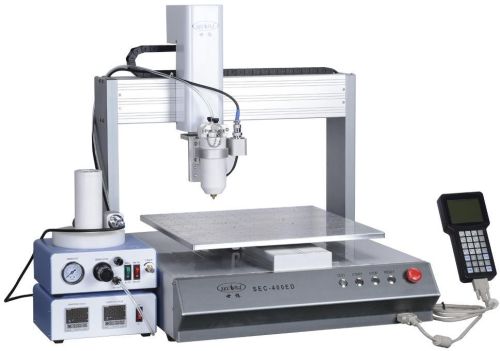

3m 2665 Hot Melt Glue Dispensing Robot

We are offering 3m 2665 hot melt glue dispensing robot.
3m 2665 hot melt glue dispensing robot (sec-400ed) applies to dispensing hot melt adhesive to cellphone case and computer case, such as lotte 3542, fuller 9496, 3m, 2665, itw 94167, etc.
working principle:
putting 50ml package hot melt adhesive into specific heater, using dispensing controller to extrude glue and 3-axis robot to complete dispensing path.
features:
1.operation with handheld lcd panel teach box, which is easy to program and learn.
2.functions of drawing points, lines, surfaces, arc, circle and consecutive complement of irregular curves to realize any 3d non planar trajectory path.
3.excellent teaching function to support array, graphical browsing, three dimensional elliptic, common graphical library inserting, group editing and so on.
4.minisd file storage with high speed and 2g capacity can store 999 dispensing process documents.
5.the size of glue, speed of glue spread, dispensing time, time of halting dispensing can be set by parameters.
6.with second special dispensing controller, glue outflow is quite stable without leaking and dripping.
7.the function of automatic gel prevention can effectively prevent glue curing from jamming needle head.
8.function of glue preheating enable greatly shortening time for replacing glue.
9.controlling temperature ranging plus-minus 1 degree centigrade by omron temperature controller.
applicable glue:
hot melt adhesive, such as lotte 3542, fuller 9496, 3m, 2665, itw94167, etc.
applicable products:
cellphone case, computer case
3m 2665 hot melt glue dispensing robot (sec-400ed) is a dispensing robot with high quality and low price.3m 2665 hot melt glue dispensing robot (sec-400ed) applies to dispensing hot melt adhesive to cellphone case and computer case, such as lotte 3542, fuller 9496, 3m, 2665, itw 94167, etc.
