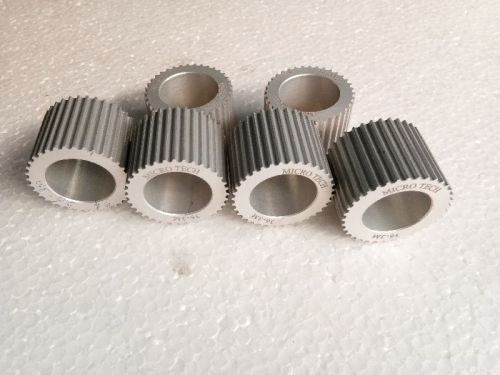

3mm HTD Timing Pulley

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The company has installed all the in-house facility wherein we maintain a large stock for meeting quick and massive requirements of the clients. Apart from presenting the quality products, we deliver the same to the customers in the set time span. Features: Durability Seamless finish High strength

View More Details

Send Enquiry

Product Details

Specifications

Pulley Size	No. of Teeth	Pulley Type	Pitch Diameter PD	Min Bore MB	Max Bore MB	Flange Diameter FD	Pulley Width PW	Bore Length L	Hub Diameter M
Suitable for 3mm Belt wide 3M06
10-3M-06	10	0F	9.55	4	4	13	7.2	14.5	13
12-3M-06	12	0F	11.46	4	6	15	7.2	14.5	15
14-3M-06	14	0F	13.37	4	7	16	7.2	14.5	16
15-3M-06	15	0F	14.32	4	8	17.5	7.2	14.5	17.5
16-3M-06	16	1F	15.28	4	6.5	18	9.8	17.5	10
18-3M-06	18	1F	17.19	6	7	20	9.8	17.5	11
20-3M-06	20	1F	19.1	6	8	23	9.8	17.5	13
21-3M-06	21	1F	20.05	6	8.5	25	9.8	17.5	13
22-3M-06	22	1F	21.01	6	8.5	25	9.8	17.5	13
24-3M-06	24	1F	22.92	6	8.5	25	9.8	17.5	13
26-3M-06	26	1F	24.83	6	10.5	28	9.8	17.5	16
28-3M-06	28	1F	26.74	6	11.5	32	9.8	17.5	18
30-3M-06	30	1F	28.65	6	12.7	32	9.8	17.5	20
32-3M-06	32	1F	30.55	6	14	36	9.8	17.5	22
36-3M-06	36	1F	34.38	6	17	38	10.3	18	26
40-3M-06	40	1F	38.2	6	18.5	42	10.3	18	28
44-3M-06	44	1F	42.02	6	22.5	48	10.3	18	33
48-3M-06	48	1	45.84	8	22.5	-	10.3	18.6	33
60-3M-06	60	1	57.3	8	22.5	-	10.3	18.6	33
72-3M-06	72	1	68.75	8	22.5	-	10.3	18.6	33
Suitable for 9mm Belt wide 3M09
10-3M-09	10	0F	9.55	4	4	13	10.2	17.5	13
12-3M-09	12	0F	11.46	4	6	15	10.2	17.5	15
14-3M-09	14	0F	13.37	4	7	16	10.2	17.5	16
15-3M-09	15	0F	14.32	4	8	17.5	10.2	17.5	17.5
16-3M-09	16	1F	15.28	4	6.5	18	12.8	20.6	10
18-3M-09	18	1F	17.19	6	7	20	12.8	20.6	11
20-3M-09	20	1F	19.1	6	8	23	12.8	20.6	13
21-3M-09	21	1F	20.05	6	8.5	25	12.8	20.6	13
22-3M-09	22	1F	21.01	6	8.5	25	12.8	20.6	13
24-3M-09	24	1F	22.92	6	8.5	25	12.8	20.6	13
26-3M-09	26	1F	24.83	6	10.5	28	12.8	20.6	16
28-3M-09	28	1F	26.74	6	11.5	32	12.8	20.6	18
30-3M-09	30	1F	28.65	6	12.7	32	12.8	20.6	20
32-3M-09	32	1F	30.55	6	14	36	12.8	20.6	22
36-3M-09	36	1F	34.38	6	17	33.6	38	13.4	26
40-3M-09	40	1F	38.2	6	18.5	42	13.4	22.2	28
44-3M-09	44	1F	42.02	6	22.5	48	13.4	22.2	33
48-3M-09	48	1	45.84	8	22.5	-	13.4	22.2	33
60-3M-09	60	1	57.3	8	22.5	-	13.4	22.2	33
72-3M-09	72	1	68.75	8	22.5	-	13.4	22.2	33
Suitable for 15mm Belt wide 3M15
10-3M-15	10	0F	9.55	4	4	13	17	26	13
12-3M-15	12	0F	11.46	4	6	15	17	26	15
14-3M-15	14	0F	13.37	4	7	16	17	26	16
15-3M-15	15	0F	14.32	4	8	17.5	17	26	17.5
16-3M-15	16	1F	15.28	4	6.5	18	19.5	26	10
18-3M-15	18	1F	17.19	6	7	20	19.5	26	11
20-3M-15	20	1F	19.1	6	8	23	19.5	26	13
21-3M-15	21	1F	20.05	6	8.5	25	19.5	26	13
22-3M-15	22	1F	21.01	6	8.5	25	19.5	26	13
24-3M-15	24	1F	22.92	6	8.5	25	19.5	26	13
26-3M-15	26	1F	24.83	6	10.5	28	19.5	26	16
28-3M-15	28	1F	26.74	6	11.5	32	19.5	26	18
30-3M-15	30	1F	28.65	6	12.7	32	19.5	26	20
32-3M-15	32	1F	30.55	6	14	36	19.5	26	22
36-3M-15	36	1F	34.38	6	17	38	20	30	26
40-3M-15	40	1F	38.2	6	18.5	42	20	30	28
44-3M-15	44	1F	42.02	6	22.5	48	20	30	33
48-3M-15	48	1	45.84	8	22.5	-	20	30	33
60-3M-15	60	1	57.3	8	22.5	-	20	30	33
72-3M-15	72	1	68.75	8	22.5	-	20	30	33
