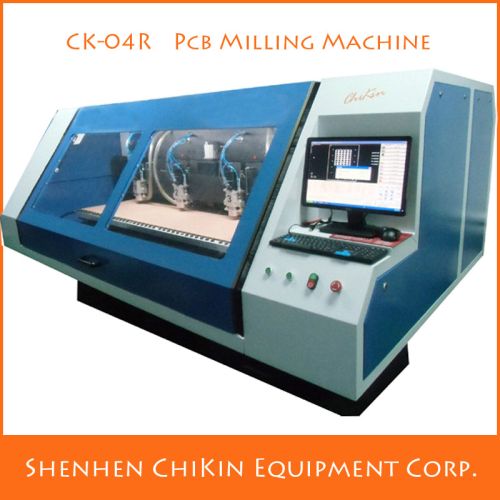

4 Axis CNC Forming Milling Automation Machine For PCB

₹ 40.73 Lakh / 59000 59000 Set

MOQ1 Set(s)
Usage/ApplicationAll kinds of PCB and aluminum plate drilling and routing
Number Of FlowerPCB Milling Machine
Automatic PIN quit deviceOptional
Milling diameter0.6-3.175mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Number Of FlowerPCB Milling Machine
Usage/ApplicationAll kinds of PCB and aluminum plate drilling and routing
ConditionNew
Milling diameter0.6-3.175mm
Automatic PIN quit deviceOptional
Weight5800KG
Warranty12 months
MaterialGranite Marble

We are offering 4 axis cnc forming milling automation machine for pcb. Spindle number, 4
spindle model, ck-04r
nc system, chikin cnc
drive system, servo
spindle type, water-cooled
operating interface, chinese interface
positioning accuracy, ± 0.005mm
molding precision, ±0.05mm
dilling diameter, 0.6-6.0mm
size of the work, 560*680mm
size of the machine, 3200*1850*1700mm
air suppl,y 6-8 bar
tool magazine capacity, 11 pcs
radius,knife,cuttingknife datection, have
working power, 380v 50hz
xyz rail, germany star
x.y.z ballscrew, germany star
x y axis displacement speed, 30mmin
z axis displacement speed, 15-30mmin

Additional Information

Payment Terms L/C, T/TWestern Union
Port of DispatchYantian / Shekou / Chiwan PORT
Packaging DetailsStandard Solid wooden cases Or according to customers' requirements
Delivery Time30 Days after 30% deposit
