4 Axis USB Controllers

Advanced 4-axis Controllers with USB 2.0 and RS-485 Communication

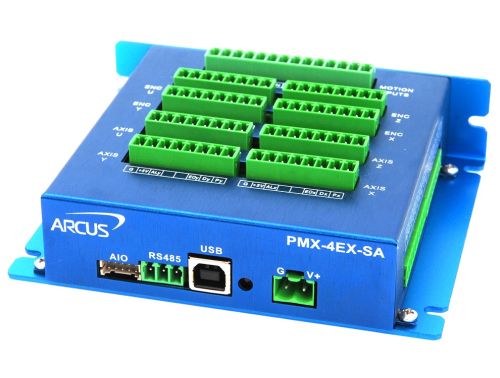

PMX-4EX-SA Series
Encoder feedback support for X, Y, Z, and U axis
XY circular coordinated motion
6M maximum pulse rate output
XYZU linear coordinated motion
Features:
4 Axis Advanced Motion Controller
USB 2.0 and RS-485 communication
6M maximum pulse rate output
Trapezoidal or s-curve acceleration
On-the-fly speed change
Continuous linear coordinated buffered XYZ move
XYZU linear coordinated motion
XY circular and arc coordinated motion
Homing using Home andor Index encoder channel
PulseDirEnable open collector outputs per axis
Opto-isolated +Limit, -Limit, Home, and Alarm inputs per axis
Single-ended or differential quadrature encoder inputs per axis
Opto-isolated Digital Inputs (8)
Analog inputs 10-bit resolution (8)
Built-in joystick control for XYZU axes
High speed position capture inputs and sync outputs
StepNLoop closed loop algorithm
BASIC-like standalone programming language
Multi-task programming support
Easy connection with DMX-A2-DRV (TB9 version)
Included Connectors:
1 x 2-pin 5.08 mm terminal (3 x for – TB9 version)
1 x 3-pin 3.81 mm terminal
1 x 10-pin 3.81 mm terminal
1 x 14-pin 3.81 mm terminal
9 x 8-pin 3.81 mm terminal (5 x for -TB9 version)
1 x 10-pin DF11 flying lead cable (1 ft)
