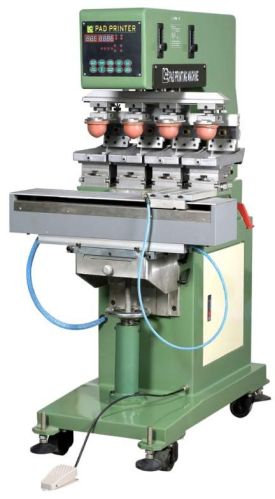

4 Color Pad Printer With Shuttle

We are offering 4 color pad printer with shuttle.
Four-color printing machine shuttle is one in a finished product is printed on the basis of four-color four
color printing machine, printing for fine products, machine design features to facilitate the replacement ink can
be looked up, cleaning oil pan, easy to maintain. This machine can be monochrome, color, three color, four
color printing with different requirements.
for example, for a variety of printed materials: metal, glass, ceramics, plastics and so on. Printing area is
relatively small plane, and the irregular surface arc printing products, such as cell phone button, golf ball, toys,
pens, mouse, electronic products, handicrafts and so on.
feature:
1, advanced computerized system control
2, which consists of four counters.
3, the body of high quality steel frame structure, surface temperature paint, light weight body solid, beautiful
and practical.
4, oil ink roller assembly and disassembly, and easy to clean.
5, independently adjustable plastic head up and down stroke and speed.
6, automatic balanced squeegee, scraping the oil neat.
7, each of the ink disk blocks can be x, y, angle independent tuning, chromatic accurate, and improve
efficiency.
8, a printing ink can stick two in order to obtain a larger printing ink.
9, you can not drop empty lines before and after the glue to prevent the pause when the ink to dry.
10, the pneumatic components of germany festo pneumatic components, the movement speed can be
adjusted independently.
Specifications：
lc-spm4-150
operation：semi-automatic
print color: 4 color
work station: 1pcs
cylinder head up and down distance: 75mm
cylinder stroke distance: 175mm
work table size: 165 × 165mm
standard plate size: 100 × 150mm (4 '× 6')
maximum printing area: 80 × 130mm
maximum speed: 800 pcs / hr
voltage: 110v/220v 50hz
power: 35 w
air requirements: 6 bar
air consumption: 72 liter / min
machine size: 980 × 710 × 1420 mm
machine weight: 170kg
lc-spm4-200
operation：semi-automatic
print color: 4 color
work station: 1pcs
cylinder head up and down distance: 75mm
cylinder stroke distance: 225mm
work table size: 165 × 165mm
standard plate size: 100 × 200mm (4 '× 8')
maximum printing area: 80 × 180mm
maximum speed: 700 pcs / hr
voltage: 110v/220v 50hz
power: 35 w
air requirements: 6 bar
air consumption: 78 liter / min
machine size: 1300 × 710 × 1370 mm
machine weight: 200kg
lc-spm4-150l
operation：semi-automatic
print color: 4 color
work station: 1pcs
cylinder head up and down distance: 75mm
cylinder stroke distance: 175mm
work table size: 165 × 195mm
standard plate size: 150 × 150mm (6 '× 6')
maximum printing area: 130 × 130mm
maximum speed: 620 pcs / hr
voltage: 110v/220v 50hz
power: 35 w
air requirements: 6 bar
air consumption: 82 liter / min
machine size: 1040 × 910 × 1420 mm
machine weight: 200kg
lc-spm4-200l
operation：semi-automatic
print color: 4 color
work station: 1pcs
cylinder head up and down distance: 75mm
cylinder stroke distance: 225mm
work table size: 165 × 196mm
standard plate size: 150 × 200mm (6 '× 8')
maximum printing area: 130 × 180mm
maximum speed: 500 pcs / hr
voltage: 110v/220v 50hz
power: 35 w
air requirements: 6 bar
air consumption: 82 liter / min
machine size: 1040 × 910 × 1420 mm
machine weight: 200kg.
