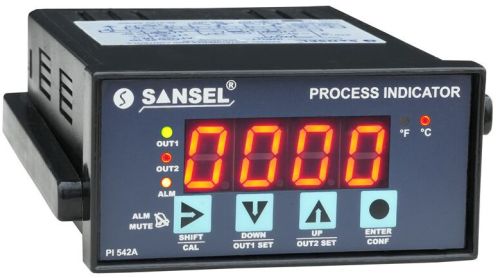

SANSEL 4 Digit Process Indicator PI 542A, Color : Black

Brand NameSANSEL
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Model: PI – 542A Display: 4 Digit, 0.5” 7 segment RED LED Analog inputs: 0 - 20 mA, 0 to 70 mV, 0 - 10 V DC, 0.0 – 400.0 Ω (H & L Limit Programmable) Temperature inputs:....

View More Details

Send Enquiry

Company Information

Sansel Instruments And Controls

Maduravoyal, Chennai, Tamil Nadu

4.6/5

(28)

View Number

Member Since 17 Years
Nature of Business Exporter
GST No. 33APGPS4066M1ZG
Company Video

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model: PI – 542A
Display: 4 Digit, 0.5” 7 segment RED LED
Analog inputs: 0 - 20 mA, 0 to 70 mV, 0 - 10 V DC, 0.0 – 400.0 Ω (H & L Limit Programmable)
Temperature inputs: RTD - PT 100, Thermocouple - J, K, R, S, T, B, N, E
Display Range: -1999 to 9999 counts (H & L Limit programmable)
Temperature range (H & L Limit programmable):
RTD - PT 100 (-199.9 to 800.0°C )
TC - J (- 200 to 200°C )
TC - K (- 200 to 1372°C )
TC - R ( 0 to 1765°C )
TC - S ( 0 to 1762°C )
TC - T (- 199.9 to 400.0°C )
TC - B ( 600 to 1800°C )
TC - N (-200 to 1300°C )
TC - E ( -199.9 to 916.0°C )
Accuracy:
0.05% FS ±1 counts (Except Thermocouple)
0.05% FS ±2 counts (only for Thermocouple)
Unit selection: °C / °F (for RTD & TC inputs)
Analog input resolution mV, mA & V: 0.001 / 0.01 / 0.1 / 1 (Selectable)
Temperature resolution: 0.01 (For RTD - PT 100 input (°C) only) /0.1 / 1 °C / °F
Filter constant: 1 – 100% (adjustable)
Relay Output* (optional): 2 Relay (5A rated) with 4 Relay Status Selection, Adjustable Hysteresis, Cyclic Delay
Re Transmission* (optional): Opto Isolated Analog Output 4 - 20 mA or 0 - 10V DC
PC communication* (optional): RS 485 (2 wire) MODBUS RTU protocol
PC Software* (optional): Monitoring, Data logging, Report & graph
Sensor Supply (external): 24 V DC ±10% @ 100 mA
Operating environment: 0 to 50°C / 5 to 95% RH non condensing
Power supply: 90 to 270 V AC / DC / 50/60 Hz
Overall Dimensions: 48(H) X 96(W) X 110(D) mm
Cut out Dimension: 44(H) x 90(W) mm
Housing: Panel mountable ABS plastic
Weight: 300 grams (Approx.)
