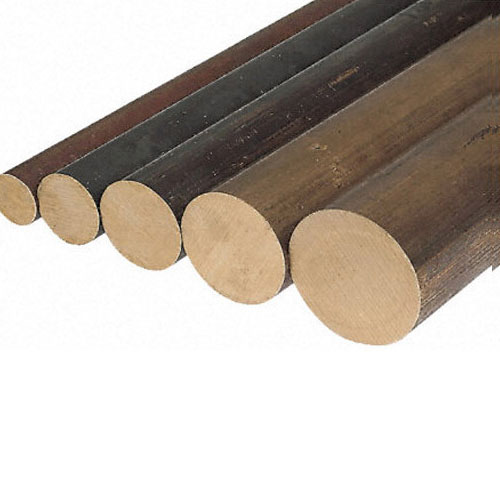

We are a leading and well recognized names in the field of offering quality finished range of CUAL 10NI5FE4 Nickel Aluminum Bronze Rods that are as per BS:2872 CA-103, 104, ADM1076D, IS:10569/83, BS:1400AB1, AB2, IS:305 AB1. Also meeting the specifications as per IS 10569/05 NR. EQUIVALENT SPEC. BS 2872/86 CA103, ASTMBC62300, these are made available in annealed finish in sizes of 6 to 15, 15 to 50, 50 to 80 and 80 and above. These bronze rods have excellent capacity to be cold and hot formed and have machine-ability rating of 50%. Further, the rods have Forge-ability rating of 75 %, fair suitability for brazing and good welding capability.
Being corrosion resistant & non sparking alloy, some of the application uses of these bronze rods include
| Aluminum Bronze | ASTM B 111 C60800 ASME SB 111 C 60800 EN 12451 CuAl5As CW200G |
|---|
| Chemical Requirements | |
|---|---|
| Copper | Remainder |
| Aluminium | 8.5 to 11.0% |
| Iron | 4.0 to 6.0% |
| Nickel | 4.0 to 6.0% |
| Manganese | 0.50% max |
| Tin | 0.10% max |
| Zinc | 0.40% max |
| Silicon | 0.10% max |
| Total Imp. Excl. Mn | 0.50% max |
| Physical Properties | |||
|---|---|---|---|
| Condition | Size | T.S. MPa | EL% Min |
| Annealed / As Manufactured | 6 to 15 15 to 50 50 to 80 80 & above | 700 700 680 650 | 10% 12% 12% 12% |
| Fabrication Properties | |
|---|---|
| Capacity for being | |
| Cold formed | Poor |
| Hot formed | Good |
| Machinability rating | 0.3 |
| Forgeability rating | 0.75 |
| Suitability for soldering | Poor |
| Suitability for Brazing | Fair |
| Suitability for welding | Good |
