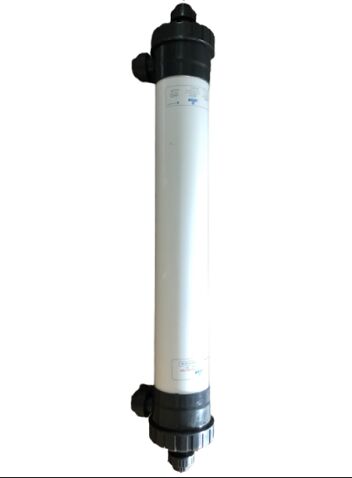

4 Inch PVDF Ultrafiltration Cartridge, Operating Temperature : 5-40°C, Product Model Number : Aruvi UF4-F3

Listing ID #6145881

8,100 / Piece

Get Latest Price

Hollow Fiber Membrane Dimensions & Effective Membrane AreaOD: ~ -1.2 mm / ID: ~0.6 mm
Operating Temperature5-40°C
Max operating pressure~ 3 Bar
Operating ModeCross Flow Or Dead-end Flow
Supply Type Manufacturer, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Hollow Fiber Membrane Dimensions & Effective Membrane Area OD: ~ -1.2 mm / ID: ~0.6 mm
Operating Temperature 5-40°C
Max operating pressure ~ 3 Bar
Operating Mode Cross Flow Or Dead-end Flow
pH Range 2-12
Suggested Operating Pressure < 2 Bar
Flow Type Out-In
Product Model Number Aruvi UF4-F3
Design Flux ~ 40 - 160 L/m²/h (output Flux May Vary Depending On Feed Water Quality)
Molecular Weight Cut Off 100, 000 Dalton
Bacteria Removal Rate > 4 Log
Max Transmembrane Pressure < 2 Bar
Backwash Pressure 0.5 -1 Bar
Permeate Turbidity < 0.1 NTU
Hollow Fiber Membrane Material Proprietary Reinforced PVDF
Housing and Seal Materials PVC/UPVC & Epoxy Resin
Module Diameter x Length (mm) 101 x 820

Interested in this product? Ask for more details & Latest Price from seller
