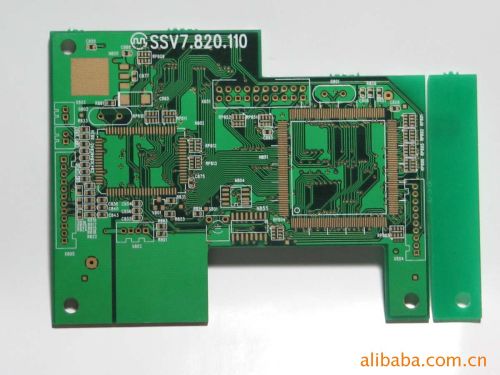

4-layer Mp3 PCB

size 4 layers
materialFR-4
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Item Specification Numbr of Layer 2 Layers Material FR-4,Taconic,Rogers, Metal-backed Laminate Finish Board Thickness 0.2mm-3.2mm(8mil-126mil) Minimun Core Thickness 0.075mm(3mil) Copper....

View More Details

Send Enquiry

Company Information

Xing Da Circuits Technology Co. Ltd.

Guangdong

View Number

Member Since 14 Years
Nature of Business Supplier
Year of Establishment 2009

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Item Specification
Numbr of Layer 2 Layers
Material FR-4,Taconic,Rogers,
Metal-backed Laminate
Finish Board Thickness 0.2mm-3.2mm(8mil-126mil)
Minimun Core Thickness 0.075mm(3mil)
Copper Thickness 1/3 oz min;11 oz max
Min.Trace Width & Line Spacing 0.075mm/0.1mm(3mil/4mil)
Min.Hole Diameter for CNC Drilling 0.1mm(4mil)
Min.Hole Diameter for punching 0.6mm(35mil)
Biggest panel size 610mm*508mm
Hole Position +/-0.075mm(3mil) CNC Drilling
Conductor Width(W) +/-0.05mm(2mil)or
+/-20% of original artwork
Hole Diameter(H) PTH L:+/-0.075mm(3mil)
Non-PTH L:+/-0.05mm(2mil)
Outline Tolerance +/-0.125mm(5mil) CNC Routing
+/-0.1mm(6mil) by Punching
Warp & Twist 0.70%
Insulation Resistance 10Kohm-20Mohm
Conductivity.
