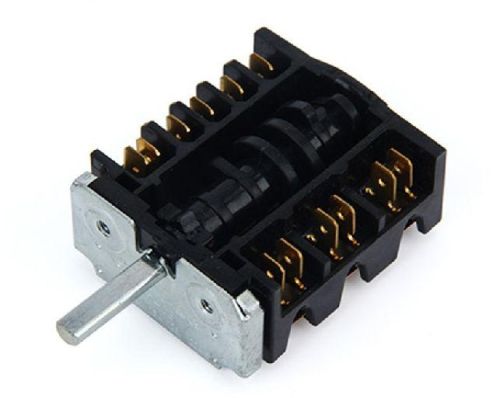

4 Position Rotary Switch

4 position rotary switch
norminal parameter:
5-speed control switch for the stove
the pf material, control switch number 0.1.2.3.4.5-speed control switch to control the different ratings of the three series or in parallel heating conductors, it can produce 4 different heat output power for different cooking process, the heating requirements of the different quantities of food.
Applies to electric oven, electric stove, and kitchen appliances.
Rotary switch, 4 position rotary switch, oven selector function rotary switch high quality exporter
characteristics
2-11 positions
easy wiring with multiple plug or single terminal 6,3mm
ac250v 16a t150
flexibility of wiring diagrams
different "click" or frictional feeling
rotary switch, bakelite rotary switch china factory
standard double contact
metal shafts with different (10-50mm), standard shaft protrude: 23mm
cm2 series is automatically assembled in a great variety of configurations
wear eyelet terminals and thin slices terminal
most of the cm. the control switches are used to meet to din49284 standard axis fixed. can use two m4 screws (28mm spacing) fixed, or use the center fixed. for a fixed center, but also requires the use of the m12*1 hexagonal nut, these parts may be oem manufacturer of cm scope of supply.
