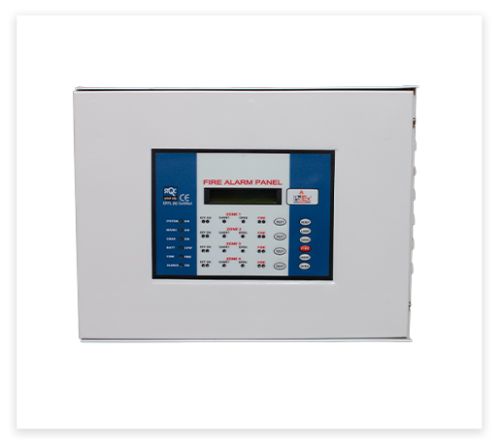

4 Zone Fire Alarm Panels, Color : Caramel White

Get Latest Price

Construction1.8 mm CRCA sheet duly power coated
EOL4k7 ohm, 1 per zone
Hooter Output1 A (24v DC)
DimensionH 245mm * W 315mm * D 90mm
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Modi International

Delhi

4.6/5

(25)

View Number

Member Since 15 Years
Nature of Business Retailer
GST No. 07AQDPM9144N1ZB

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

EOL4k7 ohm, 1 per zone
DimensionH 245mm * W 315mm * D 90mm
Hooter Output1 A (24v DC)
Operating voltage RangeAC 220v 50Hz ± 10%, DC 24 v 1.5 amp
Model NoPSS – 04Z
Operating Temperature-0º C to 50º C
Construction1.8 mm CRCA sheet duly power coated
Operating Humidity95% (non-condensing)

The PSS-04Z is an 4-Zone control panel. It is indicating equipment forms the central part of a fire detection and alarm system. The 2-wire is compatible with PSS-04Z devices. And it is the central part of conventional fire alarm system, designed for applications requiring gas leak detector, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button.

Operates on 230 V AC, 50 Hz AC supply

Battery backup with built in charger

Fire, fault status in unambiguous colored LED indications

16 x 2 line dot matrix LCD display

Zone wise fire, open, short LED indications.
