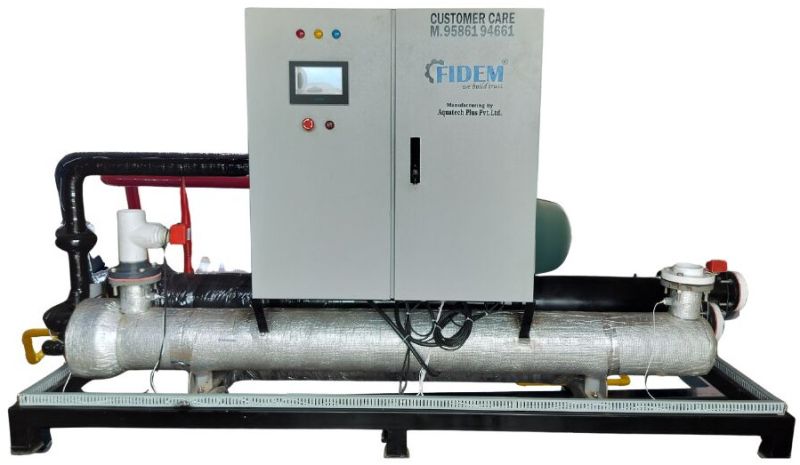

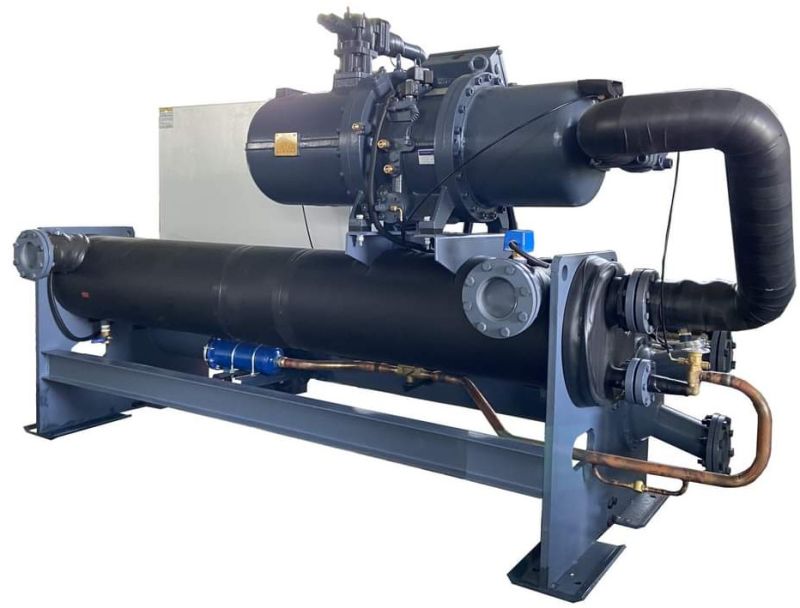

40 TR Brine Water -cooled Screw Chiller

📑 Technical Specification – FIDEM Brine Water Cooled Screw Chiller Sr. No. Parameter Details 1 Model FM-BWCS-40-407C 2 Cooling Capacity 40TR / 150 kW 3 Refrigeration Circuits 1 Nos 4 Power Supply 3Ph, 415V, 50Hz 5 Total Connected Load 69kW / 125Amp 6 Refrigerant R404a 7 Expansion Electric Expansion Valve   Evaporator - Shell and Tube 8  Temperature  (SST) -18 °C 9 Chilled Water Range -20 °C TO +5 °C 10 Chilled Water Flow 24000 LPH  (ΔT ≈ 5 °C) 11 Capacity 150KW 12 Types Shell and tube 13 Shell MOC Galvanized (10 MM) (Seamless ) 14 Tube MOC And Types Copper (Grooved ) / U- Bundle 15 Connection Size 80 mm 16 Pressure Drop 0.3 Bar 17 Water side Design pressure 10 Bar 18 Design Pressure (Refrigerant Side) 20 Bar 19 Pump 25000 Lph @ 2 Bar 20 Pump Qty / Types 1 Nos / Centrifuge Mono Block 21 Pump Power 3 KW   Brazed Plate Heat Exchanger (BPHE) – NA 22 Exchanger Type Brazed Plate Heat Exchanger 23 Capacity -- 24 Plate Material (MOC) SS316L 25 Brazing Material Copper 26 Connection Size - 27 Water Flow -- 28 Pressure Drop (Water Side) 0.25 bar 29 Water Side Design Pressure 10 bar 30 Water Side Hydro Test Pressure 15 bar 31 Refrigerant Side Design Pressure 30 bar 32 Refrigerant Side Hydro Test Pressure 45 bar 33 Design Temperature Range –20 °C to +150 °C   Condenser for Water Cooled chiller 34  Temperature  (SDT) +35 °C 35  Type Shell & Tube 36  Capacity 213 KW 37  Shell MOC Carbon Steel, Epoxy Coated 38  Tube MOC & Type Copper, Plain,  Bundle 39 Connection Size 100 mm 40 Water Flow 35m³/h 41 Pressure Drop (Water Side) 0.2 Bar 42 Water Side Design Pressure 10 Bar 43 Refrigerant Side Design Pressure 20 Bar 44 Pump 35 m³/h @ 15 m head 45 Pump Qty / Type 1 No., Centrifugal Mono Block 46 Pump Power 3.0 kW, 380–415 V, 50 Hz                 Condenser For Air cooled Chiller (NA) 47 Condenser Type Air-Cooled, Copper Tube + Aluminum Fin Coil 48 Condenser Capacity   49 Fan Type Axial, Low Noise 50 Fan Size mm 51 Fan Quantity  Nos. 52 Fan Motor Power kW 53 Power Supply 380–415 V, 50 Hz 54 Air Flow CMH 55 Ambient Design Limit Max. 46 °C 56 Refrigerant Side Design Pressure 20 bar 57 Refrigerant Side Hydro Test Pressure 30 bar   Compressor  58 Compressor types Hermetic - Screw 59 Capacity Steps 100% 60 Capacity Control Steeples 61 Compressor Starter VFD 62 Cooling Capacity 150 kW 63 Cooling Capacity (EN12900, with Economiser) 155 kW 64 Power Input 62.5 kW 65 Current (400V) 96.5 A 66 Voltage Range 380 – 415 V 67 Operating Mode Economiser 68 Liquid Temperature (Subcooling) 18,97 °C 69 Mass Flow via Economiser 736.0 kg/h 70 Oil Volume Flow 1.72 m³/h 71 Refrigerant R404A   Safety Of chillers 72 Temperature Sensors 8 Nos. , Antifreeze, Condensers In / Out , Evaporator In/ Out , Compressor , Expansion Valve Sensors,  Discharge / Suction 73 Flow Switch 2 Nos , Condensers and Evaporator 74 Pressure Transmitter 3 Nos, Compressor Suction / Discharge , Expansion Valve Pressure transmitter 75 GBC Valve 2 Nos , Brass 76 Solenoid Valve 2 Nos , Gas retune Protection 77 Liquid glass 1 Nos 78 Filter dryer 1 Nos , Replaceable 79 Oil Leave Sensors  1 Nos 80 Oil Heater 1 Nos   Control Penal 81 HMI + PLC HMI - 7” 82 Protection Compressor Overload Protection, High/Low Pressure, Phase Failure / Phase Sequence Relay, Motor
