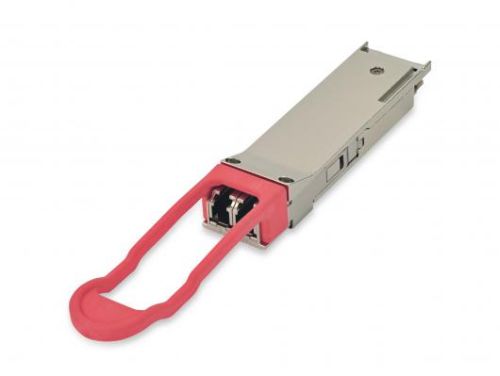

40G QSFP+ ER4 40km Fiber Optic Transceiver

The 40G QSFP+ ER4 optical transceiver is a transceiver module designed for 40km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 148-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system,single-mode fiber (SMF) has to be applied in this module.40G QSFP+ transceiver is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It hasbeen designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. Features  Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard QSFP+ MSA compliant Compliant with QDR/DDR Infiniband data rates Up to 11.2Gb/s data rate per wavelength 4 CWDM lanes MUX/DEMUX design Up to 40km transmission on single mode fiber (SMF) Operating case temperaturewww.adelafiber.com
