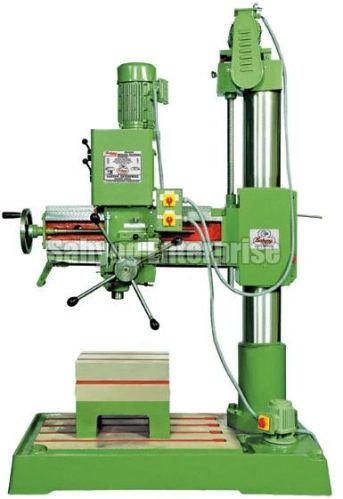

Radial Drilling Machine (SER-40)

Automatic Radial Drilling Machine (SER-40), Voltage : 415V, Color : Green

Listing ID #1455845

Get Latest Price
  • ColorGreen
  • Voltage415V
  • Automatic GradeAutomatic
  • Max. allowable AC voltage250V
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

Sahyog Enterprise verified-icon
Chitra GIDC, Bhavnagar, Gujarat
View Number
  • Member Since 11 Years
  • Nature of Business Retailer
  • GST No. 24AAHFS3875L1ZP

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

  • Color Green
  • Voltage 415V
  • Automatic Grade Automatic
  • Packagign Bulk
  • Number of feed rates 6
  • Maximum spindle travel 250mm
  • Spindle speed range 45 ~1125rpm
  • Max. allowable AC voltage 250V
  • Usage Drilling

We would Like to take this Opportunity in introducing ou newly launched product 38mm all geared Radial Drilling Machine (SER-40), as one of the leading manufacturer of radial type drilling machine & milling machine in Bhavnagar, gujarat, India. Sahyog Enterprise is a leading global name in the drill industry.
Features

  • New Improved 9 speed Gear box.
  • Hardned and grinded gears.
  • Oil Bath.
  • Main spindle made from EN Steel with 6 slots in machined by hobber and morse taper bore is provided internally grinded.
  • Auto as well as fine feed avilable.l
  • By simple Adjustment of only tapper wedge facility to set drill head on are guide way.


Standard Accessories

  • Complete Electrical With wiring & control panel
  • Built in coolant Tank
  • Drill Drift key


Optional Accessories

  • CoBox Table
  • Drill Chuck & Arbor
  • Coolant Pump with fittings
  • Machine lamp & Drill vice


Specifications

Description / Model No Ser – 40
Drilling Cap. (MS) 40mm
Taper in Spindle MT -4
Spindle Travel 220mm
No. of Speed / Range (rpm) 9 / 80 to 1265
Spindle Feed Auto Power Feed
Range & No. Of auto feed (mm/rev) 2/0.08 to 0.04
Drilling Radius max/min. 895/440
Centre of spindle to column 820 / 310 mm
Max. Spindle to base 930mm
Table size 380x300x300mm
Base size (machined area) 820 x610 mm
Power supply 1.5 HP
Column structure Single Column
Column Dia. 180mm
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

We are leading manufacturer, exporters of all types of Radial Drilling Machines, Pillar Drilling Machines, Drilling cum Milling Machines, All Geared Head Radial Drilling Machines, Universal Milling Machines since last 3 decades.
  • Nature of Business Manufacturer / Exporter / Supplier / Retailer
  • Year of Establishment 1996
