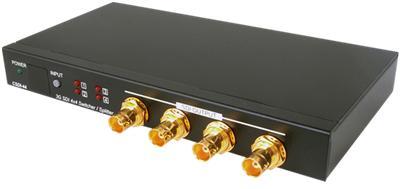

The 3G-SDI 4 by 4 SwitcherSplitter allows SD-SDI, HD-SDI and 3G-SDI signals to be switched from up to four SDI sources and split to four simultaneous SDI outputs while ensuring high bit rates of 2.970 Gbits to give you high bandwidth signal transmission without signal loss over long distances and can be controlled via IR or RS-232.
Switch between four 3G-SDI input sources and split the output to four 3G-SDI displays simultaneously
Operation at 2.970 Gbs, 2.9701.001 Gbs, 1.485 Gbs, 1.4851.001 Gbs and 270 Mbs
Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C
Provides equalized and re-clocked transmission
Control via RS-232, IR remote control (supplied) and on-panel buttons
Supports signal input and output distances of up to 300 m for SD signals, 200 m for HD signals and 100 m for 3G signals
