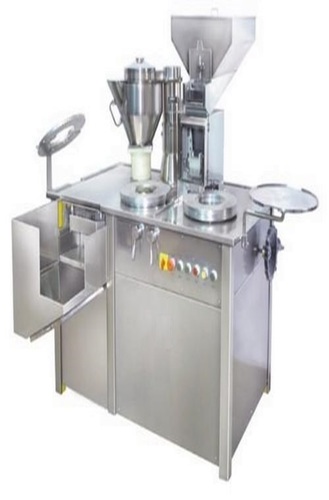

Contact SupplierThe semi-automatic capsule filling machine is user friendly with advanced features. It is designed for precision manufacturing requirements for modern pharmaceutical procedures.the machine provides a high degree of automation with higher levels of filling weight accuracy.these machines are suitable for filling capsule of all size (#00-#5) with powder,pellets and granules. Cgmp standards has been taken care during manufacturing the machine gives an approximate output of 25000 capsuleshour in single loader. Technical specification: model: single head machine output: 25,000-30, 000 capsulehour electrical main drive: 1hp, 440 volts, 50 hz, 700 rpm filling drive with reduction gear box: 0.5hp,440 volts,3 phase,50hz,1440rpm vacuum pump motor:3 hp,440 volts,3 phase,50 hz,1440 rpm vacuum: 500mm (20) of hg at 1000 liters min compressed air 200 litersmin (8cfm) at 100 psi dimension : 1650mm* 1250mm* 1650mm* (l*w*h) net weight: 550 kg approx
