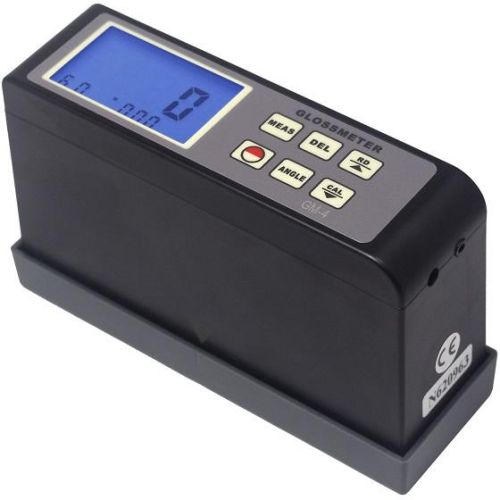

Plastic 45°Gloss Meter(Integral Type) GM-4

45°gloss meter(integral type) gm-4

1.spec:

glossmetr have different kinds of measurement angles.generally,20°applies to high gloss materials,60°applies to medium gloss materials,85°applies to low gloss materials.

2.features:

* in accordance with international standard astmd523,astwd1455,astmc346,astmc584,astmd2457,din eniso2813,din67530,eniso7668,jisz8741,mft30064,tappit480,gb9754,gb9754,gb/t13891,gb7706 and gb8807.its technical parameters confrom with jjg696-2002.

* accurate measurement,good repetitiveness.

* automatic calibration.small in size,easy to carry.

* intelligent design,rapid measurements.

* applies usb,bluetooth data output.

* built-in lithium ion rechargeable battery.

* backlight display,suitable for low light environment.

3.specifications:

display: 4 digits backlit lcd

measuring angle: 45°

range: 0.1 ~ 200 gloss units

gloss units: gu

accuracy: ±1.0 gu

resolution: 0.1

repeatability: ±0.5 gu

measuring area: 7 x 14 mm（ellipse）

data memorized: 254 groups

operating conditions: temp: 0 ~ 40°c; humidity: < 85% rh

power supply: 3.7 v lithium ion rechargeable battery

dimensions: 140 x 45 x 75 mm

weight: 305 g（including batteries）

standard accessories: main unit, holder with calibration standard, ac adapter, optical cleaning cloth, carrying case（b04）, operation manual

optional accessories: usb data cable with software, bluetooth data adapter with software
