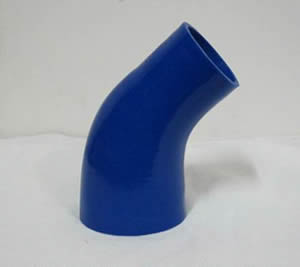

45 Degree Silicone Reducer Hose

We are offering 45 degree silicone reducer hose is engineered for a transition between two pipes with different sizes. Three types of silicone reducers are provided here: polyester reinforced, nomex reinforced. Each of them has its own unique properties.
polyester reinforced
45��reducer silicone hose with polyester reinforcement is very effective for carrying water, coolant, air. It is often used in cold sides of intercooler, turbo and intake components and piping.
features:
working temperature: 50�� to +170�� (-58�h to 338�h);
uv and ozone resistant;
3 to 5-ply premium polyester fabric reinforced;
silicone hose creates a barrier to loosen medium;
available in black, red, blue.
remark
reducer silicone hose reinforced by polyester is not compatible with fuel or oil.
technical specification:
part no leg length plies wall internal diameter
er45/32-25 102x102mm (4") 3 4mm 32 to 25mm
er45/38-32 102x102mm (4") 3 4mm 38 to 32mm
er45/63-51 102x102mm (4") 4 5mm 63 to 51mm
er45/76-63 102x102mm (4") 4 5mm 76 to 63mm
er45/102-76 125x125mm (5") 5 6mm 102 to 76mm
nomex reinforced
nomex reinforced silicone hose is notable for its higher working temperature high pressure. Compared to polyester reinforced conducer, its operating temperature can reach +220�� (+428�h). 45 degree silicone reducer is frequently used in hot sides of turbo boost hoses and intercooler where other hoses fail.
features:
working temperature: -60�� to 220�� (-76�h to +428�h);
3 - 5-ply nomex reinforced configuration;
uv and ozone resistant;
high flame-resistant;
silicone hose creates a barrier to loosen medium;
only available in black.
remark: silicone conducer reinforced by nomex is not compatible with oils & fuel.
technical specification
part no leg length plies wall internal diameter color
er45/38-32 ht 102x102mm (4") 3 4mm 38 to 32mm black
er45/63-51 ht 102x102mm (4") 4 5mm 63 to 51mm black
er45/76-63 ht 102x102mm (4") 4 5mm 76 to 63mm black
er45/102-76 ht 125x125mm (5") 5 6mm 102 to 76mm black.
