Ceiling Speaker

Availability470 g (1.04 lb)
Dimensionsφ168 × 77 (D) mm (φ6.61" × 3.03")
Frequency Response100 - 18,000 Hz (peak -20 dB)
Rated Impedance100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Availability470 g (1.04 lb)
Dimensions for Fixing HoleMounting hole: φ145±5 mm (φ5.71"±0.2")
Speaker Mounting MethodSpring clamp
Speaker Component12 cm (5") cone-type
FinishBaffle: Polypropylene resin, off-white (RAL 9010 or equivalent color)
Rated Input6 W (100 V line), 3 W (70 V line)
AccessoryPaper pattern …1
Sensitivity90 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)
Dimensionsφ168 × 77 (D) mm (φ6.61" × 3.03")
Rated Impedance100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
Frequency Response100 - 18,000 Hz (peak -20 dB)

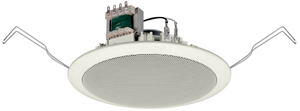

Integrated with a resin panel and speaker frame, the PC-648R is the ceiling mount speaker with a metal attached. It features spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer.
