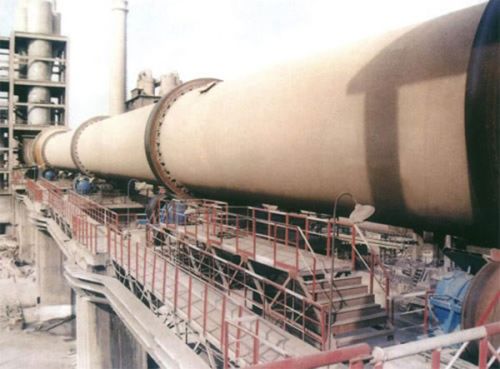

48-1000 Rotary Kilns

Model:î¦1.6x32--î¦4.7x72(m)
capacity: 48-1000(td)
application: cement production,active lime production etc
rotary kiln is a kind of thermal equipment calcines lump, bulk and slurry materials. It is widely used in cement & construction, non-ferrous metals, lime, ferrous metals, refractory materials, industrial chemicals, paper making industries etc.1. New type technology is adopted by main driving system. Compared with traditional magnetic and dc speed regulation, its main driving system has the advantages like energy saving, environmental, wide speeding adjusting range, high performance and stable operation.
2. After the welding of bases for supporting devices of supporting roller and catching roller, vibration aging treatment should be applied for remove the welding stress. Then, use vertical lathe and boring-milling machine for integration fabrication. This process can guarantee the requirement of fabrication precision and dimension & location tolerance. Installation accuracy of rotary kiln is obviously improved.
3. Temperature measuring point is reserved at bearing base of supporting roller. It is mainly used for automation detection of kiln operation status by insert the measuring device.
1. Support device: advanced shaft structure, automatic temperature measuring device and electrical heating.
2. Catch wheel: including two kinds of mechanical wheel and hydraulic pressure.
3. Gears: single or double. Control the rotating speed by variable motor, de machine and frequency variable motor. Be reliable, energy saving and efficient.
4. Cylinder tyre bolster: lower bolster has three types: fixed, zoom and floating. The structure is simple. Replacement is convenient and won�t hurt cylinder.
5. Sealing equipment: there are many kinds for choice according to kiln models, including air cylinder edge sealing, spring edge sealing, graphite block sealing and combination for above.
