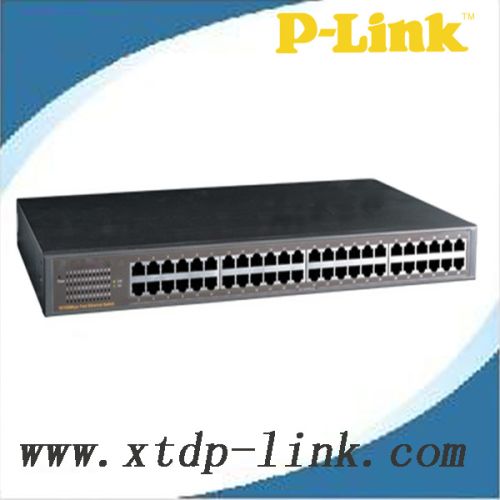

P-Link 48 Port 10/100M ETHERNET SWITCH

Features:
 Fully compliant with IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX)
 48 10/100Mbps Auto-negotiation Ethernet Ports
 All ports support Full/half duplex transfer mode for 10Mbps/100Mbps
 Supports Auto-MDI/MDIX function
 Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode
 Store and forward Switching scheme
 LED indicators for monitoring power, link, activity, 100Mbps
 Supports MAC address auto-learning and auto-aging
 Standard 19-inch rack-mountable steel case
 Internal universal power supply
Specification:
Standard IEEE 802.3、IEEE 802.3u、IEEE 802.3ab
Port 48 10/100M Auto-Negotiation RJ45 ports supporting Auto MDI/MDIX
Network Media (Cable) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
Data Transfer Rate Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex)
Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex)
Network Media (Cable) 10Mbps: 14880pps, 100Mbps: 148800pps
LED Indicator Each port Link/Act, 10M/100M
Others Power
Dimension(L x W x H) 440 x 285x 44 mm
Environment Operation Temperature：0ºC-40ºC； Store Temperature：-40ºC-70ºC
Operation Humidity：10%-90% RH Non-condensing；
Store Humidity：5%-90% RH Non-condensing
Power 110-260V/AC, 50/60Hz
Package:
MEAS:53.5X39X52 cm
N.W.
G.W.:
Q'TY: 5PCS/carton
