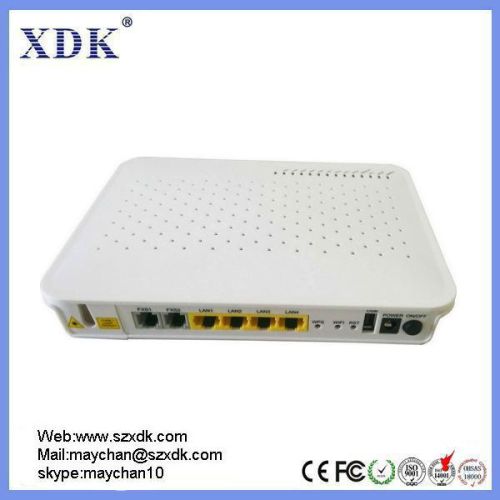

Contact Supplierwe are offering 4fe 2pon gpon onu ftth/fttb wifi ont /ftth modem.
2,product specifications
technical items
descriptions
pon interface
2 pon, down stream:1.25 gbps, up stream:1.25 gbps,1management port
wavelength
tx 1310nm, rx 1490nm
connector
scpc
wlan
compliant with ieee802.11bgn
support the connection distance
up to 100 meters
emc esd
en55022 b(cispr 22b) iec 61000-4-2 gr-1089-core
lan
ieee 802.3 10100base-t, automated negotiation
full duplexhalf duplex ,support rj-45 mdimdix
downstream lan interface
4 10100mbps auto adaptive ethernet interfaces, rj45 connectors
downstream pots interface
2 fxs, rj11 connectors
indicators
11 indicators, for status of power supply, pon, lan and pots.
dc power supply
+12v, external ac-dc power adaptor
reset button
1, restore the device.
power button
1, power onoff the device
power consumption
≤ 12 w
operating condition
running temperature:- -10~55°c
storage temperature:-30ºc~60ºc
storing condition
operating humidity:10%~90% ,on-condensing
storage humidity: 5%~95% ,non-condensing
dimension
245 mm x 150 mm x 37mm(length*width*height)
net weight
0.55kg
