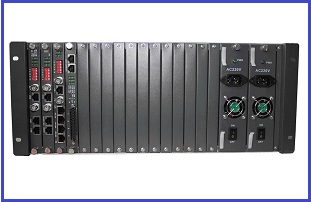

4u Rack Mount Chassis, Brand Name : Baudcom

The 4u rack mount chassis support kinds of e1 interface converter and pdh fiber optical multiplexer,the rack chassis support snmp management,double power.
description:
the 4u16port rack(bd-ch04) can support for 16 interface fiber card. Every card could work independently and different types of interface converter card can be inserted in one rack�the system power supply is separated from interface converter by communication insulation technology, so that the reliability of the system can be ensured.
feature:
u support kinds of pdh fiber optical multiplexer cards (1e1,2e1,4e1, 8e1, 16e1,
1e1+100m ethernet,2e1+100m ethernet,4e1+100m ethernet, 8e1+100m ethernet, 16e1+100m ethernet)
u support kinds of e1 interface cards (e1 to ethernet converter,
e1 to v.35 converter, 4e1 to ethernet converter),
u compact 4u high,19inch rackmount units
u support maximum 18 cards, 2 slots for power supply module, 16slots for service cards(15service cards+1 network management card)
u realize snmp management by central chassis
u every function card supporting hot plug;
u there are two power supply slots, can support double power or single power.
work condition
operating temperature: 0 � ~70 �
storage temperature: -40 � ~85 �
relative temperature: 5%~95% non-condensing
power supply card
option I � dc48v,range dc36v~dc72c
option ii � ac220v,range ac90v~ac240v.
