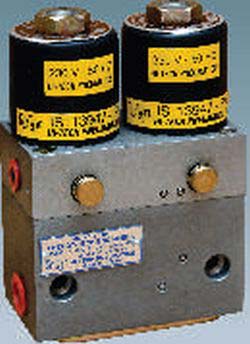

5/2 Way Pilot Operated Double Coil Solenoid Valve

We are one of the most sought after Manufacturers, Exporters as well as Suppliers of 5/2 Way Pilot Operated Double Coils in national territory. Made up of the finest grade materials, our Solenoid Valves can be used up-to 80°C. Further, we also provide customized solutions for our Valves. With us, buyers are free to place orders, we ensure timely deliveries.

Features

• Type : 5/2 Way Pilot Operated Double Coil, Impulse Operated Poppet type Design
• Port Connection : 1/4" BSR
• Mounting : Suitable for sub base mounting
• Media : Air
• Operating Temperature : 80^oC max.
• Operating Pressure : 2-10 bar.
• Orifice : 6mm
• Flow Factor : 12 KV.
• Coil : 230 VAC/ClassV Insulation/ Size 1/ IP65 Protection.
• Coil Power Consumption : Inrush VA-18/ Hold on VA-12/ Wattage- 6W.
• Valve Body Material : Aluminium alloy hard anodised.
• Manual Override : Push Button type.
• Application : Solenoid Valve for Double Acting Cylinder, where Port is required to be latchico when power fails.
