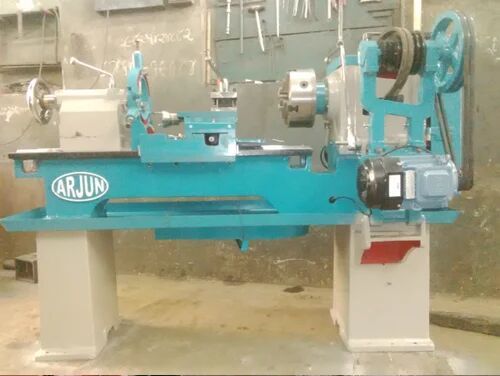

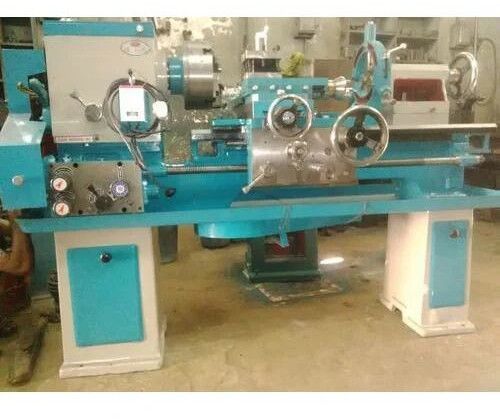

5.3 Medium Duty Lathe Machine With Full Norton Gear Box

₹ 1.52 Lakh / piece

Brand NameArjun
Tail Stock Ram50.8 mm
Height of Centre215 mm
Tool Slank Section22 x 22 mm
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 12 Years
Nature of Business Retailer

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameArjun
Tail Stock Spindle TaperMT-4
Spindle Nose Thread6 TPI 76.2 mm
Tail Stock Ram50.8 mm
Ram Travel150 mm
No Of Speeds6
Swing Over Bed425 mm
Floor Space2100 x 970 mm
Swing Over Cross Slide260 mm
Weight750 kg
Length Of Bed In Of Face Plate125 mm
Tool Slank Section22 x 22 mm
Compound Travel135 mm
Bed Width279 mm
Length Of Gap In Bed110 mm
Diameter Of Screw31.75 mm x 4 TPI
Bed Type2V & 2 Flat
Range40-550 mm
Height of Centre215 mm
Length Of Bed1600 mm
Movement Of Cross Slide225 mm
Swing In Gap620 mm
Main Motor2 H.P, 440 V
Taper Bore In Spindle SleeveMT-4

We have marked a distinct and dynamic position in the market by offering a high-quality array of Medium Duty Lathe Machine with state-of-the-art design and unique features. At our well-maintained production unit, the offered machine is manufactured by our qualified professionals using supreme quality components and sophisticated technology. Our provided machine is widely used in various operations like cutting, knurling, sanding, drilling, etc. Besides, our provided machine is highly applauded in the market due to its diverse remarkable attributes. Features: Highly efficientLess power consumptionHigh operational fluent
