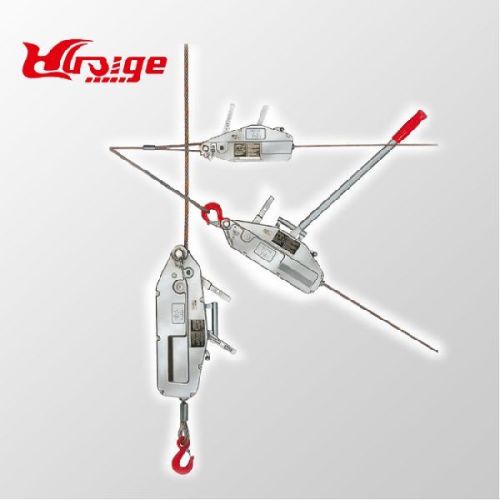

5.4 Ton Ratchet Lever Block

5.4 ton wire rope lever hoist ratchet lever block Our factory specializes in the production of manual winch, our pursuit of excellent quality, strict technical requirements and competitive prices, with sincere service to treat every customer, we strive to adhere to, only recognized by more and more customers and follow, this is my biggest motivation to continue to move forward! 1.Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M. 2.All hoists are supplied complete with 20 meter wire rope and an extendable operating lever. 3.Wire rope is tapered one end and fitted with a hook and safety catch at the other end. 4.The hoist has low maintenance requirements and is easy service. 5.Overload protection ensures high personal safety when in operation. 6.Specially built-in shear pins can be replaced without removing the load. Model Capacity(T) Rated before stroke Handle effective length Level Wire rope dia Wire rope Net weight(KG) Wire rope length Wire rope dia HGL-618-0.8 0.8 ≥52 825 1 8 10;20 6 ≤284 428x64x235 HGL-618-1.0 1 ≥52 825 1 8 10;20 6 ≤353 428x64x235 HGL-618-1.6 1.6 ≥55 1200 1 11 10;20 12 ≤412 545x97x286 HGL-618-3.2 3.2 ≥28 1200 2 16 10 23 ≤441 660x116x350 HGL-618-5.4 5.4 ≥30 1200 2 20 10 45 ≤745 800x180x500 5.4 ton wire rope lever hoist ratchet lever block In the years I have operated winches on the trail, the majority of their use has been for road repair, not vehicle recovery.
