Automatic Benchtop Thickness Tester, for Industrial Use, Feature : Electrical Porcelain, Proper Working

Listing ID #4159560

4 Lakh - 5 Lakh / each

Get Latest Price

MOQ 1 Piece
Accuracy500
Range5-10
Country of OriginUSA
TypeThickness Tester
Supply Type Manufacturer, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Accuracy 500
Range 5-10
Country of Origin USA
Type Thickness Tester
Certification Other
Application Industrial Use
Color Green, Multicolor, White
Feature Easy To Use, Electrical Porcelain, Proper Working, Superior Finish
Condition New
Frequency 66Hz
Automatic Grade Automatic
Power Source Electric
Operating Current Single Phase
Warrenty 1year
Temperature Capacity High Temperature
Puncture Voltage 440V
Brand Name Labthink
Weight 5
Power 100
Resolution 1080
Usage thickness
Product Name Tester

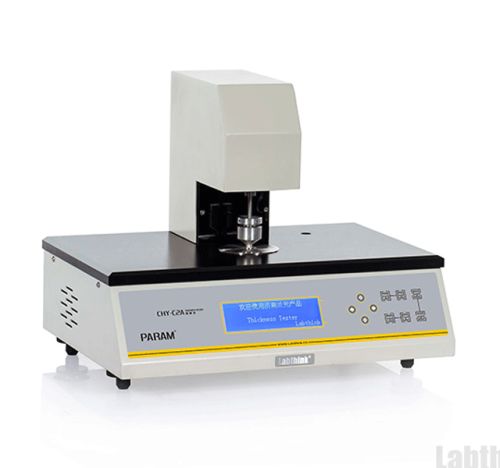

CHY-C2A Thickness Tester is designed based on mechanical contacting method, which effectively ensures standard and accurate test data and is applicable to thickness test of plastic films, sheets, diaphragms, paper, foils, silicon wafers and other materials within specified range.

Features

Contact area and test pressure are strictly designed according to standard requirements, while customization is also available
Automatic lifting presser foot facilitates to minimize system errors caused by human factors during the test
Manual or automatic operating mode for convenient test
Displays real-time data of maximum, minimum, average and standard deviation value for data analysis
Automatic statistics and printing functions are available which is convenient for the user to obtain the test results
Equipped with standard block for system calibration to ensure uniform and accurate test data
The instrument is controlled by micro-computer with LCD display, PVC operation panel and menu interface
Equipped with RS232 port which is convenient for data transfer
Supports LystemTM Lab Data Sharing System for uniform and systematic management of test results and test reports

Specifications	CHY-C2A
Test Range	0~2 mm (standard) 0~6 mm, 12 mm (optional)
Resolution	0.1 μm
Test Speed	10 times/min (adjustable)
Test Pressure	17.5±1 KPa (film) 50±1 KPa (paper)
Contact Area	50 mm2 (film) 200 mm2 (paper) Note: Select one presser foot for film or paper; Customization is available
Instrument Dimension	461 mm (L) x 334 mm (W) x 357 mm (H)
Power Supply	220VAC 50Hz / 120VAC 60Hz
Net Weight	32 kg

Basic Applications	· Plastic Films and Sheets
	· Paper and Paper Board
	· Foils and Silicon Wafers
	· Metal Sheets
	· Textiles and Non-woven Fabrics
	· Solid Electrical Insulating Materials

Extended Applications	· Extended Test Range of 5mm and 10mm
	· Curved Presser Foot

Additional Information

Payment Terms L/CWestern Union
Port of Dispatch INBOM
Packaging Details own packaging
Delivery Time 5-6 weeks
