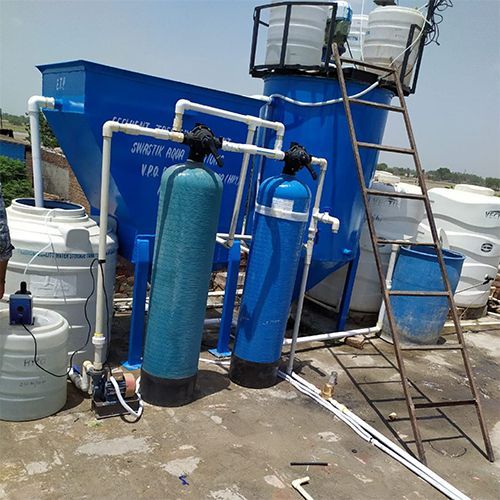

5 Kld Hybrid STP Plant

The 5 KLD Hybrid Sewage Treatment Plant (STP) by VEPL (Ventilair Engineers Pvt. Ltd.) is a compact, fully integrated wastewater treatment solution designed for small residential buildings, villas, offices, schools, and commercial setups.

Key Features:

• Capacity: 5 Kiloliters per day (KLD)

• Treatment Technology: Moving Bed Biofilm Reactor (MBBR)-based biological treatment combined with advanced physical and chemical filtration.

• Construction: Mild Steel (MS) capsule with 3 mm Fiber Reinforced Plastic (FRP) coating on both inner and outer surfaces for corrosion resistance.

• Design: Plug-and-play skid-mounted modular unit; minimal civil work required.

• Components Included:

  • Multi-Grade Filter (MGF)

  • Activated Carbon Filter (ACF)

  • Micron Filter

  • Hypo (chlorine) dosing system

  • Filter feed tank

  • pH adjustment system

  • Air blowers

  • Sewage and filter feed pumps

  • Electrical control panel

  • Flow and water meters

  • Filter press (for sludge management)

  • UV disinfection unit

  • Optional Ultra Filtration (UF) for sensitive reuse applications.

• Automation: Semi-automatic with control modules for easy monitoring and operation.

• Power Consumption: Approximately 0.5 kW for water pumps and air blowers.

• Effluent Quality: Produces treated water suitable for non-potable reuse such as gardening, flushing, and cleaning; BOD, COD, and TSS levels meet CPCB/SPCB standards.

• Sludge Management: Integrated sludge reduction system reduces frequent sludge removal requirements.

• Applications: Residential townships, commercial complexes, hotels, educational institutions, and small industrial facilities.

• Warranty: Typically 1 year on system components.

• Benefits:

  • Compact footprint suitable for limited spaces.

  • Eco-friendly, cost-efficient operation.

  • Reduced sludge handling and maintenance.

  • Supports water reuse solutions.

• Price: Around ₹5.5 Lakh (price may vary based on customization and accessories).

Summary Table

The 5 KLD Hybrid STP by VEPL provides an efficient, reliable, and low-maintenance solution ideal for small-scale sewage treatment needs, ensuring compliance with environmental regulations and promoting sustainable water reuse.
