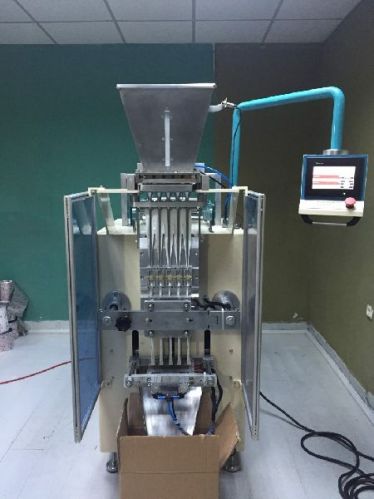

5 LANE STICK SUGAR WRAPPING MACHINE, Brand Name : GoldPak Makina

It is possible to make stick sugar from granulated sugar by using the machine which is produced by the best-quality materials. It is easy-to-use and produced basing on the standards like cleaning and maintenance. Product statement and capacity information can be acquired by commanding the plc system. Gold paketleme makina gıda san. Ve dış tic aş. Is producing the gst-100 stick sugar packaging machine over 10 years of experience. The paper which was produced with poly-ethylen method, comes printed from the press with the width of 200 mm and weight of 50+15 gr and 70+15 gr, is attached to the machine’s bobbin attaching section. The paper on the bobbin is transferred to the 4-blade section in a controlled way by the help of pulleys. In the blade section, the paper with the 40mm width is divided into 5 equal pieces, then transferred to the collar and pillow section. In this section, papers pass on the channels on pillow and wrap around the pipes which the crystal sugar is transferred.
The sides of these wrapped paper, are sealed vertically(rigidly) from the back section in the form of a+a, by means of the resistances inside the vertical jaw(rigid claw). After the sealing process, made by the help of vertical jaw, the granulated sugar which is on the top side of the machine’s sugar tank, is transferred into the sealed paper, which can take 1-10 grams, by the help of piston mechanism. The bottom claw group is cutting the length of the packs equally by sealing bottom and top side of the stick packs according to the photocell point on the paper.
The stick sugars which were packed and cut, are transferred on the output conveyor for packing. Also, it is possible to make production different than the standard stick sugar pack dimensions. The amount of sugar, to be produced according to the consumer needs, is entered on screen and this provides the machine to stop automatically when the production finishes
