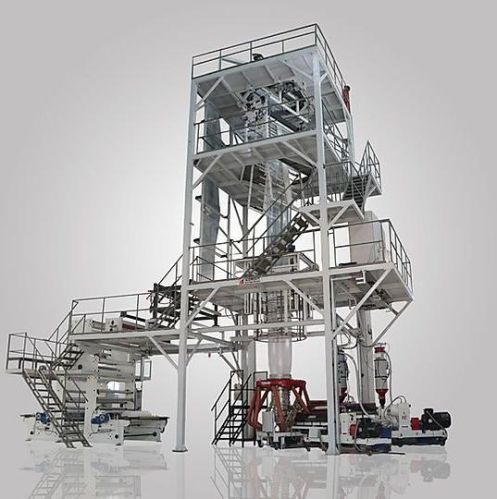

5 Layer Blown Film Plant

5 LAYER POD

To meet specific needs, all-PE 5 layer co-extruded blown film line benefitted with down gauging, lower cost of final film, adaptability across applications enhances the ROI still further.

This 5 layer line while ensuring a thin skin layer of property polymers and a thick core layer of inexpensive materials, offers enough versatility for processors to produce films that comply to difficult industry demands with specifications that provide a competitive edge to its customers' business, both in terms of diverse film properties and of course at lower costs. The film capabilities with a 5 layer are significant when compared to a conventional 3-layer alternative.

Five layer POD have quickly become the answer to achieve the desired optical properties, printability and sealability by balancing the characteristics of the new resins which are being made available in the raw materials market.

Optional Devices​

Gravimetric Dosing System, Extrusion Process Control, Air / Water Chiller, Corona Treater,

Bi-Metalic Screw & Barrel Set, Hydraulic Unloading, Digital Web Aligner, Empty Shaft Loading system,

Hydraulic Unloading System, Main Panel Air Condition, Auto Thickness/Width Control, S wrap Cooling System etc.

TECHNICAL SPECIFICATION

• Model Name:  Innoflex Three Layer CO-Extrusion Blown Film Plant
• Material Used: LDPE, LLDPE, HDPE, PP, CO-POLYMER, EVA etc.
• Output Range: 100 - 500 Kg/Hr (Depends On Extruder's Size)
• Screw Diameter: 40/45/55/60/65/75/90 MM (Customized)
• Screw L/D ratio: 30:1 (Customized)
• Layflat Width: 1000 - 3000 MM
• Thickness: 20 – 200 micron

Applications of 5 layer blown film

5 Layer POD lines are tailored for various application segments such as collation shrink films, lamination grade films, milk and water pouches, edible oils, courier bags and many more.

To meet specific needs, all-PE 5 layer co-extruded blown film line benefitted with down gauging, lower cost of final film, adaptability across applications enhances the ROI still further.
