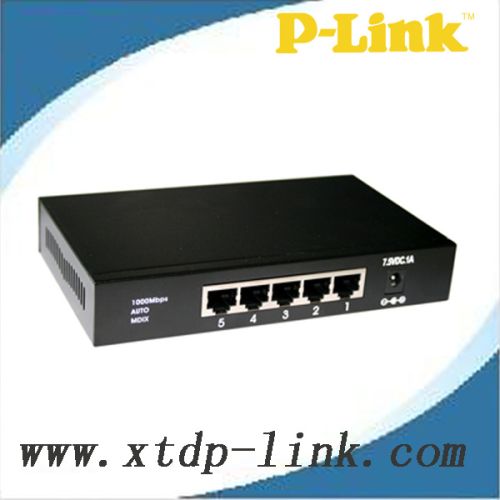

5-port 10/100/1000m Ethernet Switch, Brand Name : P-Link

We Offer Ethernet Switch.
description:
the Pl-gs3005-a1 is a High Performance Smart Gigabit Switch that Provides An Ideal Solution for Workgroup or Department Gigabit Applications. with 5 10/100/1000base-t Gigabit Ethernet Ports with Auto-mdix Provides Full Bandwidth (maximum 2000mbps in Full Duplex Mode). Easy-to-view Led Indicators are Supported for Cable Installation and Normal Operational Diagnostics. the Switch Can Be Used a Desktop or in a Rack-mount.
features:
 comply with Ieee 802.3, Ieee 802.3u and Ieee 802.3ab Standards
 5 10/100/1000mbps Auto-negotiation Rj45 Ports Supporting Auto-mdi/mdix
 support Ieee 802.3x Flow Control for Full Duplex Mode and Backpressure for Half Duplex Mode
 non-blocking Switching Architecture that Forward and Filter Packets At Wire-speed for Maximum Throughput
 support Mac Address Auto-learning and Auto-aging
 led Indicators for Monitoring Power, Link and Activity
 steel Case, Desktop or Wall-mounting Design
 external Power Adapter Supply
specifications:
standards ieee 802.3 10base-t Ethernet
ieee 802.3u 100base-tx Fast Ethernet
ieee 802.3ab 1000base-t Gigabit Ethernet Ansi/ieee Std 802.3 Nway Auto-negotiation
ieee 802.3x Flow Control
rotocol csma/cd
data Transfer ethernet: 10mbps (half Duplex),20mbps (full Duplex);
fast Ethernet: 100mbps (half Duplex),200mbps (full Duplex);
gigabit Ethernet: 2000mbps (full Duplex)
topology star
network Medium 10base-t：cat. 3 or Above Cat.3 Utp(≤100m)
100base-tx：cat. 5 Utp(≤100m)
1000base-t：cat. 5 or Above Cat.5 Utp(≤100m)
number of Ports 5 10/100/1000m Rj-45 Ports
uplink any Port (support Auto-mdi/mdix Function)
transmits Method store-and-forward
fibering and Transmitting Speed 10base-t：14, 880pps/port
100base-tx：148, 800pps/port
1000base-t：1, 488, 000pps/port
power Supply 110-260v~50-60hz0.6a (internal Universal Power Supply)
environment operating Temperature: 0 C~40 C (32 F~104 F)
storage Temperature: -40 C~70 C (-40 F~158 F)
operating Humidity: 10%~90% Non-condensing
storage Humidity: 5%~95% Non-condensing
dimension(w X H X D) .(116 X 95 X 28 Mm)
power Supply Output 7.5v/ 1a
package:
meas: 52x35x30 Cm
n.w.:
g.w.:
q'ty:40/carton
