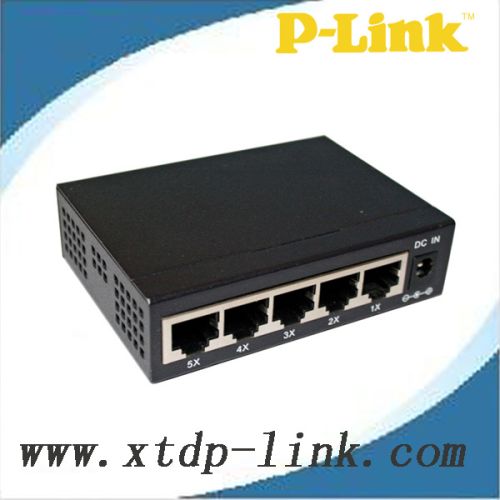

P-Link 5 Port 10/100M ETHERNET SWITCH

1ã??support Ethernet standards
2ã??small volume
3ã??desktop Steel case
4ã??OEM products
5ã??Packaging can increase customer LOGO
Introduction:
PL-ES105D-D1 Fast Ethernet Switch, MINI and exquisite, is specially designed for SOHO and SMB users. With easy installation, stable performance and high forwarding rate, it supports Auto MDI/MDIX and auto negotiates the port connection mode. In addition, MAC address auto learning/aging and 1K MAC address table are also provided.
Features:
ï?¬ Complies with IEEE802.3, IEEE802.3u standards.
ï?¬ 5 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX.
ï?¬ Supports IEEE802.3x flow control for Full Duplex mode and backpressure for half-duplex mode.
ï?¬ Supports MAC address auto-learning and auto-aging.
ï?¬ LED indicators for monitoring power, link, activity.
ï?¬ Steel case, desktop
ï?¬ External Power Adapter supply.
Specification:
Standards IEEE802.3 10Base-T, IEEE802.3u 100Base-TX
Ports 5 10/100Mbps Auto-Negotiation ports
Network Media(Cable)
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)ï¼?
EIA/TIA-568 100Ã? STP (maximum 100m)ï¼?
100Base-Tx: UTP category 5, 5e cable (maximum 100m)ï¼?
EIA/TIA-568 100Ã? STP (maximum 100m)
Swiching capacity 1G
LED Indicators 100Mbps Link/Act
Transfer Method Store-and-Forward
MAC Address Learning Automatically learning, automatically Update
Frame Filtering and Forward Rate 10Mbps: 14880pps, 100Mbps: 148800pps
Dimension 88x82x22mm
Environment Operating Temperature: 0 C~40 C (32 F~104 F)ï¼?
Storage Temperature: -40 C~70 C (-40 F~158 F)ï¼?
Operating Humidity: 10%~90% non-condensingï¼?
Storage humidity: 5%~90% non-condensing
Package:
MEAS: 50X30.5X37 cm
N.W.
G.W.:
Q'TY:50PCS/carton
