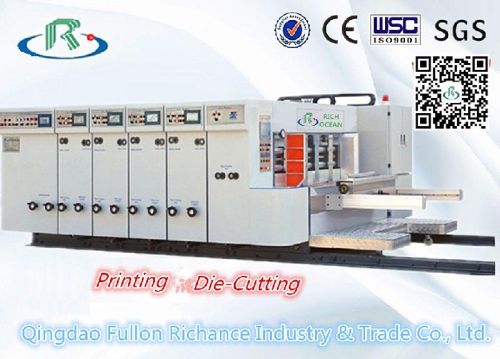

5 Series Fixed Five Color Corrugated Carton Paper Printer

Main configuration:
 1.Servo motor drive vacuum absorption leading edge paper feeding, the feeding accuracy is 0.5 mm, eliminate the machine vibration completely when feeding.
 2.Paper feeding unit fixed dust extraction fan, brush and static electricity adjusting equipment, completely eliminate the dust on the board, make sure good printing quality.
 3.Adopted fixed structure, single servo drive, eliminate re-error, make sure printing color accuracy, meet glaze, UV demand.
 4.Full vacuum absorption transmission high quality, printing colors precision 0.20mm, pneumatic lift transport box for pasting convenience.
 5.Vacuum absorption fan adopt high-flow fan, the noisy of machine lower the same machine.
 6.Non-axis drive transmission servo motor and servo control system adopt Germany Beckhoff original motor and drive system. Make sure the motor and system long term running accuracy and stability. Servo reducer adopt Taiwan APEX servo reducer, to meet system electrical transmission error 3 mm.
 7.Anilox roll press, pressing and printing roller adjusting precision 0.03mm, numerical display.
 8.Supply ink by Peristaltic pump, easy to adjust the speed flow, supply ink and circle ink pipe enclosed structure.
 9.The drying system between color group, to meet high-speed printing requirement.

Technical parameters
Model 5-D800
Color five colors+ UV glazing
Highest Speed 250 pmin
Economic Speed 180 pmin
Max. Feeding Size 850� 1800 mm
Min. Feeding Size 250� 650 mm
Max. Printing Size 800� 1750 mm
Printing Color Accuracy ± 0.20 mm
Die Cutting Accuracy ± 0.5mm
Standard Printing Thickness 7.2 mm
Paperboard Thickness Arrangement 1~10 mm
The High of Stacking 1600mm
Dimension 10m*4.5m*2.2m
