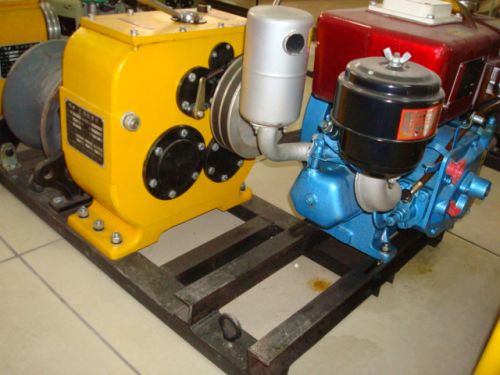

5 Ton Capacity Diesel Power Source Winch

5 ton capacity diesel power source winch in factory Features:Small size & compact structure. The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine. High efficiency. It reduces the labor intensity, improves working efficiency with less operators and convenient field command. Application: Supply 8 Ton Diesel Powered Winch  is used for tower erection,pole setting,stringing wire in electrical power line construction.Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical  shape and coming with steel rope. Technical Data: Product No. Model Rated Load (KN) Orientation Gear Pulling Force (KN) Pulling Speed (mmin) Total Weight (KG) 10052 GM-1P (Petrol) 10 Positive Ⅰ(Slow) 8(0.8T) 12 50 Ⅱ(Fast) 6(0.6T) 18 Reverse Ⅰ(Slow) No Lifting 12 Ⅱ(Fast) 18 10053 GM-1E (Electric) Positive Ⅰ(Slow) 8(0.8T) 12 55 Ⅱ(Fast) 6(0.6T) 18 Reverse Ⅰ(Slow) No Lifting 12 Ⅱ(Fast) 18 10054 GM-3P (Petrol) 30 Positive Ⅰ(Slow) 30(3T) 4 85 Ⅱ(Fast) 18(1.8T) 7 Reverse Reverse No Lifting 3.5 10055 GM-3D (Diesel) Positive Ⅰ(Slow) 30(3T) 5 100 Ⅱ(Fast) 18(1.8T) 9 Reverse Reverse No Lifting 4.5 10056 GM-3E (Electric) Positive Ⅰ(Slow) 30(3T) 4 90 Ⅱ(Fast) 18(1.8T) 7 Reverse Ⅰ(Slow) No Lifting 4 Ⅱ(Fast) 7 10057 GM-5P (Petrol) 50 Positive Ⅰ(Slow) 50(5T) 4.5 150 Ⅱ(Fast) 23(2.3T) 10 Reverse Reverse No Lifting 4.5 10058 GM-5D (Diesel) Positive Ⅰ(Slow) 50(5T) 5.5 170 Ⅱ(Fast) 23
