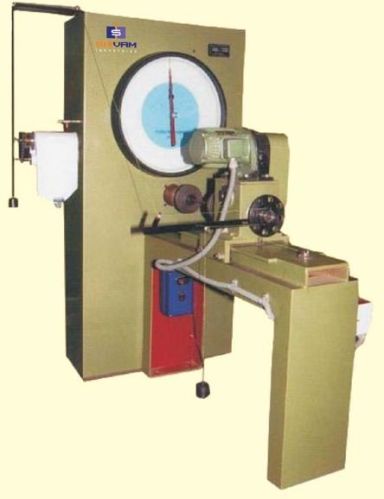

Torsion Testing Machine

Number Of FlowerComputerized
Availability500-1000 Kg
Torsional Speed0.1/0.2 RPM
Torque Ranges100,50,20 (NM)
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Number Of FlowerComputerized
Availability500-1000 Kg
Torsional Speed0.1/0.2 RPM
MaterialStainless steel
Ranges0.5 Kgm to 1000 Kgm
Torque Ranges100,50,20 (NM)

Torsion Testing Machine Suppliers
Torsion Testing Machine is designed for conducting torsion and twist on various metal wires, tubes, sheet and other such materials. Torque measurement is done by pendulum dynamometer system. Torque range can be adjusted by auto torque selector. Torque applied to specimen by geared motor through gear box. Autographic recorder gives the relation between torque and angle of twist. Our Torsion Testing Machine is easy to operate and quite durable. We are engaged in manufacturing and supplying of Torsion Testing Machine in India. Being one of the prominent Torsion Testing Machine Suppliers, we have established an extensive network across the country to ensure that orders are delivered on a timely basis.

Technical Specifications

Model	SGITTM-6	SGITTM-10	SGITTM-20	SGITTM-50	SGITTM-100	SGITTM-200	SGITTM-300	SGITTM-600
Capacity Kg-m	6	10	20	50	100	200	300	600
Ranges Kg-m	6 & 3	10, 5 & 2	20, 10 & 5 10 & 5	50, 25 25 & 10	100, 50 50 & 20	200, 100 60 & 30	300, 150 150 & 60	600, 300
No. Of divn. on dial	600	500	500	500	500	500	600	600
Torsion Spedd & direction	Fixed One Way	Fixed Reverse	Fixed Reverse	Fixed Reverse	Fixed Reverse	Fixed Reverse	Fixed Reverse	Fixed Reverse
Clearance Between Grips (mm)	0-400	0-420	0-450	0-500	0-600	0-1000	0-1000	0-1500
Grips For Round Bars Dia (mm)	4-12	4-12	7-20	10-30	10-35	20-50	30-60	40-70
Grips For flat Bars (mm)	1-5	2-8	3-10	5-12	5-15	10-20	15-25	25-40
Width (mm)	25	25	30	40	50	60	60	70
Motor 3ph hp	0.5	0.5	0.5	2	2	3	5	7.5
