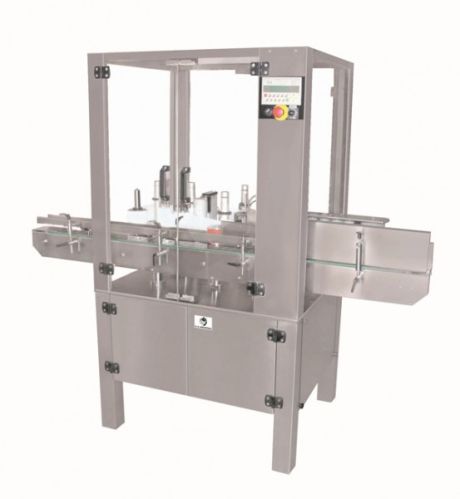

Automatic High Speed Sticker Labelling Machine

High Speed sticker Labeling machine is N.K Industries solution for labeling at relatively higher speed in industries like pharmaceutical , Food , Pesticide etc.

Silent Feature of Machines

1. A total cGMP model
2. High Production Speed up to 240 containers/min depends upon the type of vial.
3. S.S. 304 Constructions.
4. Servo Assisted Accurate label dispensing.
5. Secondary Pressing unit.
6. Batch coding printing like Inkjet printing can be accommodating.
7. Automatic label length detection.

Basic Machine configuration

1. Imported Gear Motor
2. Imported Gear Box
3. Imported A.C. Frequency Drive for main drive.
4. Servo motor with High efficiency driver with encoder inbult
5. Imported Sensor for Label & Container
6. PLC system with touch screen HMI.

1. NKSAL -240, a High Speed Sticker Labeling machine is used for labelling of round container which is previously filled and sealed.
2. No change parts are required for change over of container size.
3. Machine conveyor will receive container from infeed turntable, it will be separated by the feeding roller assembly to maintain the pre determined space between the two containers according to the label length and container diameter.
4. Label is placed on the container immediately when it will be sensed by the container sensor, it ensures instant adhesive of label’s edge. Then it passes through the pressing unit resulting in precise registration and crease-free application.

Optional Features:

1. Label Roll Empty - Machine Stop System with Alarm
2. Missing Label in Roll - Machine Stop System with Alarm
3. Special Label Sensor for sensing Transparent Film Labels which does not have any sensing mark on it.
4. Toughened Glass or Acrylic Safety Cabinet for Machine
5. Tower Light showing the machine status / operation
6. Special Sensing system for checking missing label on product
7. Visison System for checking Barcode, presence or absence of Coding or pharma code on labels
8. Vision System for checking various detail on labels
9. Online pneumatically operated product rejection system
10. Wrap Round System for applying Wrapround Label on Round Bottles.
