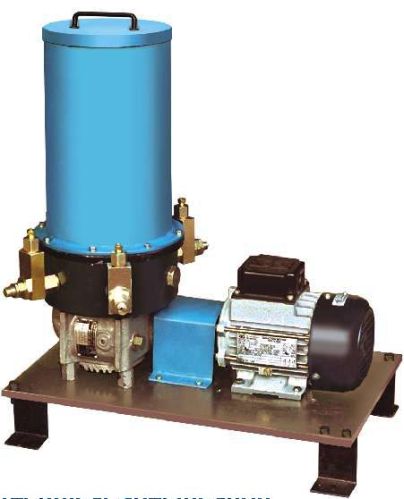

Multi Point Radial Lubricator, Capacity : 500cc

Multiline radial lubricator is best suited for machine /plant where lubrication is required with high pressure continuously / intermittently for individual point. This lubricator are used for machine / plant like rolling mill, sugar plant, cement plant, rubber mixing machine, forging hammer, stone crusher, spong iron plant etc. This lubricator comprise of a single pumping station having a number of plunger pump placed radically and fitted on to the outer periphery of the housing. Each plunger unit is given a reciprocating motion with the help of a cam. The cam rotates with the help of an electric motor and speed reduction gear box. The dose per plunger pump / cycle is 0.05 to 0.25cc (adjustable) with maximum pressure 200 Kg/cm2. These all plunger pump are connected to the lubrication point directly / progressive block by mean of tube, rubber hose, compression type fitting, clamping etc.
Grease filling in the reservoir with the help of other pump. %" BSP port is provided on reservoir.
• Always use proper & clean lubricants. Avoid foreign particles in the pump.
• Always fill the lubricants before it is empty to avoid air in the pump.
• Should always careful with regular maintenance of plungers and reservoir for its long life.

Note:

• (LX) Transparent Reservoir
• Reservoir Capacity Provided as per customer Requirement.
