500l Beer Equipment

₹ 22.44 Lakh / Set

MOQ1 Set(s)
MaterialSUS304 Stainless steel and red copper
Namebeer equipment
Usagebrew beer
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are offering 500l equipment. This equipment system contains mainly parts below: 1. Malt mill (ty300 ,1set) 300- 500kg h, motor power 3.75kw, roller style. 2. Mash boiling tank (500l ,1set)....

Product Details

We are offering 500l equipment.

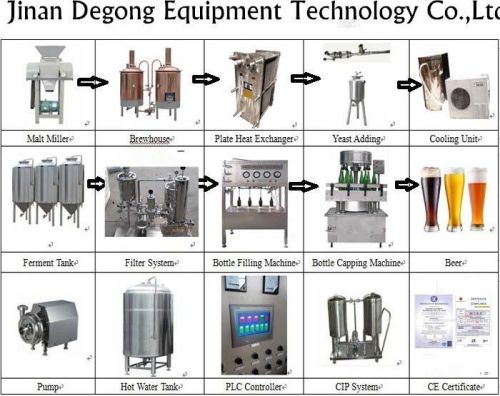

This equipment system contains mainly parts below:
1. Malt mill (ty300 ,1set) 300- 500kg h, motor power 3.75kw, roller style.
2. Mash boiling tank (500l ,1set) mirror-polished copper .
3. Mash lauter whirlpool tank (500l,1set) with inner thickness: 2.5mm 304 stainless steel;outside: mirror-polished copper.
4. Fermentation tank (1000l,8sets) 1240l; effective volume: 1000l; both inside and outside ,stainless steel304. Insulation material ,pu. Temperature measurement method: bi-metal thermometer temperature.
5. Ice water tank (1000l,1set) insulation materials: polyurethane; liner: stainless steel, outer frosted or mirror stainless steel panel; with sewage outfall.
6. Wort pump (baw120,1set) motor power: 0.75kw, flow: 3 tons h lift: 15 meters, impeller diameter: 110mm, mash lauter tank,boiling tank, whirlpool sharing
7. Plate heat exchanger (br0.05-3,1set) 304 stainless steel, the two phase cooling
8. Refrigeration group (q3.0sa,2sets) 3.75kw, 380v, freon 22, cooling capacity 5p full-closed
9. Ice water pump (sgr40-6-20,1set) voltage 220v, 0.75kw, flow; 3t h, lift 20 meters, the standard nozzle path.

Additional Information

Payment Terms L/C, D/P, T/T
Port of DispatchQingdao
Packaging Detailsexporting standard, wrapped with black cotton or with plastic film firstly then outside by iron frame or wooden box. or according to customers' requirements
Delivery Time25 days
