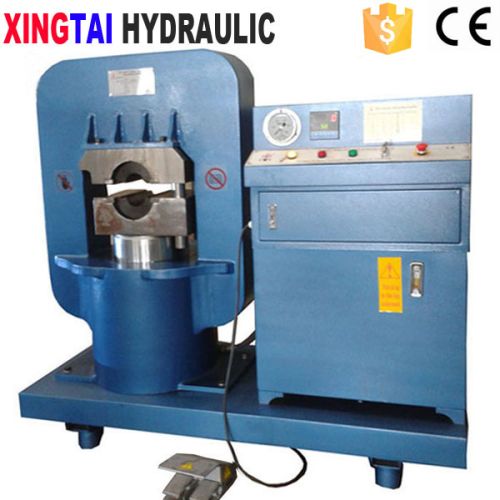

500ton Wire Rope Press Machine, Packaging Type : blue

Gt steel wire rope pressing machine is a new generation of wire rope rigging processing equipment, which is developed with advanced technology and processes by xingtai group. Gt pressing machine is with compact institution, easy to operate, high efficiency, beautiful appearance. The machines have national patent certificate(zl 2007 2 0195552. 8.) and are certificated by eu standards-ce.pressed slings are with high strength conclude and safe load. Comparing with conventional splicing technology, pressing machine can greatly improve the processing efficiency and save wire rope. Xingtai pressing machine have widely used in metallurgy, mining, ports, railways, electricity and other industries. Xingtai machines have exported to uk, australia, the netherlands, malaysia, poland, south africa, thailand, russia, latvia and so on.
Features:
1. Overall basket design, small size, high strength, good concentricity, pressed slings with smooth surface
2. The body of swaging construction is manufactured from one single block construction that ensure stress uniform, high strength, long service life.
3. Xingtai use latest materials, combined seals and ultra-wearable guide ring between the the piston rod and the cylinder, so that the cylinder is with higher sealing performance, safe, reliable and durable
4. Round mold design and automatic positioning is easy to change different molds.
mode no.: gt-650t
max press power (kn) 6500
max wire rope diameter in one pressing (mm) ï�38
max wire rope diameter in multi-pressing (mm) ï�48
max working pressure (mpa) 56
max piston movement (mm) 160
power (kw) 5.5
voltage (hz) 50
total length (mm) 1650
total width (mm) 650
total height (mm) 1550
the up speed of piston (mmsec) 4.8
the down speed of piston ((mmsec) 7.8
net weight (kg) 3000
