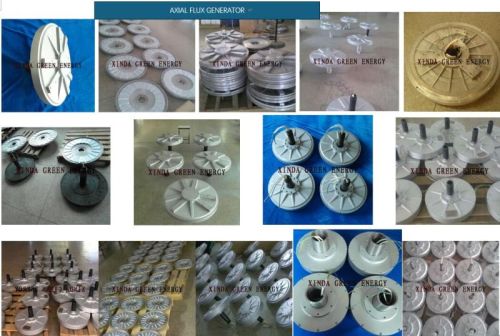

Our disc coreless PMG have advantage in low Rated speed, Low starting wind speed, Small volume, Energy Small, Light weight, Compact structure,High efficiency etc.
① Coreless, anhysteresis, slotless, have low starting torque.
② No iron loss, have high efficiency
③ Adopt unique coreless precision winding technology design precision coil
④ Adopt the rare earth permanent magnet, which is multipole, mean gap, high power density and high output power.
⑤ Low speed direct driving, no torque fluctuations
⑥ Compact structure, high ratio of power to volume
⑦ No iron loss, low calorific value,small temperature rise
⑧ Simple structure, easy to install
⑨ The brushless structure, free maintenance
3. RANGE OF APPLICATION
vertical axis wind turbine; gasoline generators; hydroelectric generator
NO. | PARAMETER | UNITS | DATA |
1 | Rated power | KW | 50 |
2 | Rated speed | RPM | 400 |
3 | Rated voltage | V | 400VAC |
4 | Rated Current | A | 7.6 |
6 | Efficiency |
| >85% |
7 | Resistance (Line-Line) | Ω | - |
8 | Winding type |
| Y |
9 | Insulation Resistance |
| 100Mohm Min(500V DC) |
10 | Leakage level |
|
