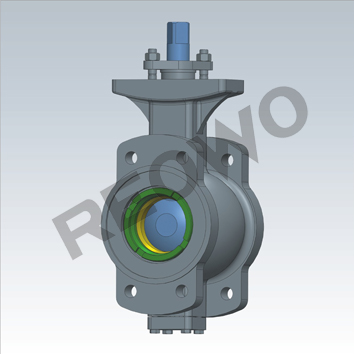

50p Series Eccentric Rotary Valve

We are offering eccentric rotary valve.
Outline
the 50p series eccentric rotary valve is also called cam flex control valve. The body and bonnet of the control valve adopt the integral structure. The body cavity is of streamlined straight-through type with simple flow channel, low flow resistance and low loss of pressure drop, and the erosion of body and trim can be reduced. The rotation center of the plug is not concentric with the rotary shaft, so that the seat abrasion is reduced and service life is prolonged. In addition to having good control function, the eccentric valve also has the function of shearing the medium. Therefore, it is an ideal solution to the service conditions with media containing granules.
Actuator and auxiliary control device
•pneumatic
•electric
•pneumatic-hydraulic
applications
•chemical fiber, electric power, metallurgy
•pharmacy, environmental protection
manufacturing range
•size range: dn 1" -12"
150-600lb
•connection type: wafer type
parameters of control valves
•trim features: eccentric structure
•body type: straight-through type
•bonnet type: standard integral type
•flow characteristic: approximately equal percentage
•shut-off class: asme b16.104 iv
•pipe connection type: wafer type, flange type
•applicable temperature range: -196℃-180℃
•actuator type: pneumatic piston actuator.
