Laminated Aluminium 512 Cylindrical Battery Cell Capacity Cabinet

## **512 CYLINDRICAL BATTERY CELL CAPACITY CABINET 5V 3A (SKXD-512-5V3A)**
### **[Product Data Sheet]( />
## **1 Year Warranty**
### High-Precision Battery Testing and Charging for Cylindrical Cells

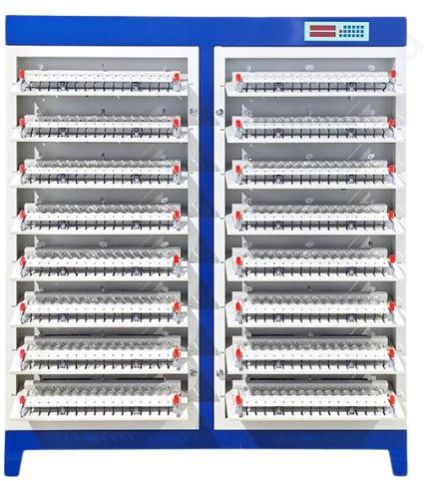

The **SKXD-512-5V3A** is a professional-grade **Cylindrical Battery Cell Capacity Testing Cabinet** designed for high-throughput performance. With a total of **512 independent test channels**, each supporting **5V/3A**, this system is ideal for **18650, 21700, 26650**, and other cylindrical lithium-ion battery formats.
Whether you're a battery manufacturer, lab engineer, or quality control manager, the **SKXD-512-5V3A** ensures **precise capacity grading, charge-discharge cycles**, and **voltage/current monitoring** with top-tier reliability.
### Key Features
* **512 Channels**: Each channel is fully independent, allowing simultaneous charging/discharging for up to 512 cells.
* **Voltage & Current Range**: 0–5V / 0–3A per channel – perfect for most cylindrical Li-ion cells.
* **High Precision Measurement**:
* Voltage Accuracy: ±0.02%FS
* Current Accuracy: ±0.05%FS
* **Intelligent Control System**:
* Advanced PC-based software interface
* Real-time monitoring of all cell statuses
* Supports multi-step charge/discharge programming
* **Data Logging & Export**:
* Automatically records cycle data
* Exports to Excel/CSV formats for analysis
* **Built-in Safety & Thermal Control**:
* Overvoltage, overcurrent, and temperature protection
* Smart ventilation and cooling fans
* **Industrial-grade Construction**:
* Durable steel cabinet
* Modular drawer-style battery holders
* Ergonomic design for easy maintenance
### Technical Specifications
- **Model** SKXD-512-5V3A
- **Channel Count** 512 (64 slots x 8 cells each)
- **Voltage Range** 0–5V
- **Current Range** 0–3A
- **Voltage Accuracy** ±0.02%FS
- **Current Accuracy** ±0.05%FS
- **Cell Types** 18650, 21700, 26650, etc.
- **PC Software** Included (Windows Compatible)
- **Power Supply** AC 220V ±10%, 50/60Hz
- **Cooling Method** Forced Air Cooling
- **Communication** RS485 / Ethernet
- **Dimensions** Approx. 1800mm × 800mm × 1800mm
- **Weight** ~400kg
### Applications
* Lithium-ion battery production lines
* R&D battery development labs
* University and industrial battery testing centers
* OEM battery pack capacity sorting
### Why Choose SKXD-512-5V3A?
* **Massive Capacity**: Test 512 cells simultaneously with top-tier consistency
* **Precision Engineering**: Delivers laboratory-grade results with every cycle
* **Full Automation**: Reduces labor and increases testing throughput
* **Data-Driven Decisions**: Empower your QA/QC process with real-time analytics
* **Trusted by Industry Experts**: Used globally in advanced battery manufacturing
