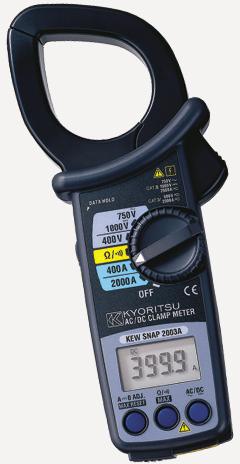

AC/DC Digital Clamp Meters - Kew 2003A

Name: AC/DC Digital Clamp Meters - Kew 2003A
Brand: Kyoritsu
Price: 30377 INR
Availability: InStock

₹ 30,377 / piece

Company Information

Ask for more detail from the seller

Report incorrect details

Availability530g Approx.
Power SourceBattery, R6 (AA) (1.5V) × 2
Dimension250(L) × 105(W) × 49(D)mm
Display TypeDigital
Brand NameKyoritsu
DC A400/2000A ±1.5%rdg±2dgt
Continuity buzzerbuzzer sounds below 50±35Ω
DC V400/1000V ±1%rdg±2dgt
OutputRecorder :DC400mV against AC/DC400ADC200mV against AC/DC2000A
Included Accessories7107A (Test leads)8201 (Output Plug)9094 (Carrying Case)R6 (AA) × 2Instruction Manual
Conductor sizeØ55mm max.
Optional Accessories8008 (Multi-Tran) (AC only)7256 (Output cord)
Safety StandardIEC 61010-1 CAT IV 600V , CAT III 1000VIEC 61010-031IEC 61010-2-032
AC V400/750V±1.5%rdg±2dgt [50/60Hz]±1.5%rdg±4dgt [40Hz – 1kHz]
AC A400A/2000A (0 – 1000A)±1.5%rdg±2dgt [50/60Hz]±3%rdg±4dgt [40 – 500Hz]±5%rdg±4dgt [500Hz – 1kHz]2000A
Frequency response40Hz – 1kHz
Ω400/4000Ω ±1.5%rdg±2dgt

^{AC/DC Digital Clamp Meters}

Equipped to measure both AC and DC current with transformer jaws of large diameter.
Can measure AC and DC currents up to 2000A.
Output terminal for connection to recorders.

AC A	400A/2000A (0 – 1000A)±1.5%rdg±2dgt [50/60Hz]±3%rdg±4dgt [40 – 500Hz]±5%rdg±4dgt [500Hz – 1kHz]2000A (1001 – 2000A)±3%rdg±2dgt [50/60Hz]
DC A	400/2000A ±1.5%rdg±2dgt
AC V	400/750V±1.5%rdg±2dgt [50/60Hz]±1.5%rdg±4dgt [40Hz – 1kHz]
DC V	400/1000V ±1%rdg±2dgt
Ω	400/4000Ω ±1.5%rdg±2dgt
Continuity buzzer	buzzer sounds below 50±35Ω
Conductor size	Ø55mm max.
Frequency response	40Hz – 1kHz
Output	Recorder :DC400mV against AC/DC400ADC200mV against AC/DC2000A
Safety Standard	IEC 61010-1 CAT IV 600V , CAT III 1000VIEC 61010-031IEC 61010-2-032
Power source	R6 (AA) (1.5V) × 2
Dimensions	250(L) × 105(W) × 49(D)mm
Weight	530g approx.
Included Accessories	7107A (Test leads)8201 (Output Plug)9094 (Carrying Case)R6 (AA) × 2Instruction Manual
Optional Accessories	8008 (Multi-Tran) (AC only)7256 (Output cord)
