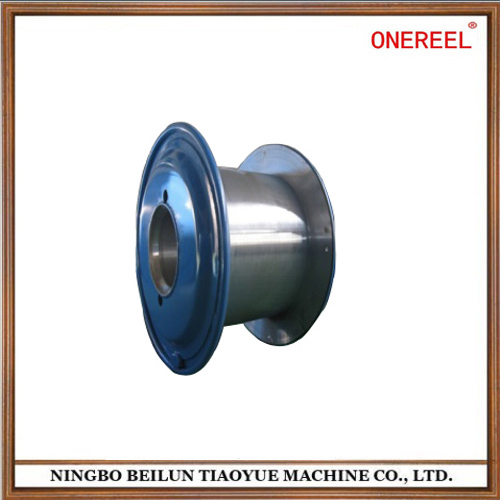

560mm Wire Cable Reels Drum Roller

560mm wire cable reels drum roller size range a wide range of flange diameters from 200mm to 1250mm according to din 46397 and imperial dimensions from 16" to 48". Application these are in-process take-up reels for high speed single and multiwire drawing machines, also stranding and bunching machines, for ferrous and non ferrous wires. Typical products suitable for multiwire, plainand tinned copper from 6/0.02mm. To 12/0.4mm diameter. Plain and tinned single ends of copper from 0.1mm to 3.5mm diameter. Single ends of aluminium from 1mm to 5mm diameter. Enamelled wire manufacture. Technical data manufactured from high quality steel plate and tube. Welded by mig process, all welds and weld preparations confirming to bs 5135. Machined on cnc lathes for precision and repeatable dimensions and tolerances. Dynamically balanced to iso 1940 for operation at 40 m/sec. Precision machined for use in robotic handling systems, and on automatic guided vehicles. Designed for minimal flange disortin when loaded, to ensure uniform traversing and high speed pay-off into extrusion lines, bunchers, re-wind for braiding, etc. Suitable for transportation between factories. Options several options are available to meet your exact requirements: non-standard metric or imperial dimensions.
