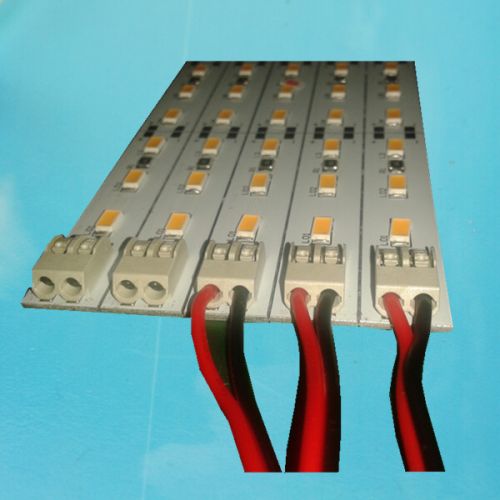

5630 Terminal Connectable LED Rigid Strip

We offer 5630 terminal connectable led rigid strip.
Connectable 5630 FR4 led pcb board
Product Parameter:
Model: JS-DTSLR01-AN LED Qty: SMD5630 72 PCS
Power: 24 W Input Frequency: 5060Hz
Working Voltage: DC12VV PCB Size 1000*12*1.5mm
Material: Aluminum PCB Face White
Lamp Luminous Flux: 50-60lmpc Angle: >120°
CRI: ≥80 Light Degradation: 10000h0.8 IP Ranting: IP33,IP65
Working temperture: -20°C~40°C Face Temperature: ≤40°C
Lifetime: 50,000 h Warranty: 3years
Color temperature: WW:2800~3200,NW:4000~4500,CW:6000-6500K
Product Introduce
LED Rigid strip is based on the LED lamp as the light source, the PCB circuit board as the carrier,The sircuit on the appropriate current limiting resistor and the design of the lighting production with the high brightness,energe-saving advantages,according to the required length shearing,According to the installation requiements,the plates can be required to cut(three lamp group), .
Product Future
1. The highlighted 5630 LED production, high brightness, less heat
2. Light color pure and soft, no glare. Both can be used as a decoration use, also can do it and lighting use
3. The LED cold light source, light color purity, exposure to the gold and silver jewelry watches, jewelry and surface can have very good display effect
4. Long service life, the life expectancy in 4 ~ 50000 hours, maintenance free, easy installation, with the installation environment change light Angle adjustment
5. Low calorific value. Can be used as the decoration lighting, fish tank water temperature increase caused by the high number of calories without established, affected the growth of the fish
