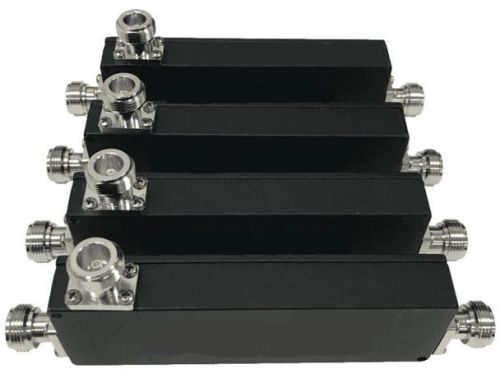

5g 5db 7db 8db 10db 12db 15db 20db Directional Coupler N Female 698~4000mhz -165dbc For Ibs Das Bt

5g 5db 7db 8db 10db 12db 15db 20db Directional Coupler N Female 698~4000mhz -165dbc For Ibs Das Bt

₹ 300 - ₹ 350 / piece

MOQ1 piece
Brand Namerf connector house
Colorwhite,white
ConditionNew
Applicationindoor
Supply TypeManufacturer, Exporter, Supplier, Distributor
Preferred Buyer Location India ( Delhi, Karnataka, Chhattisgarh, Gujarat, Maharashtra, Goa, Uttar Pradesh, Bihar, West Bengal, Rajasthan, Haryana, Jharkhand, Andhra Pradesh, Dadra & Nagar Haveli, Chandigarh, Daman & Diu, Punjab, Pondicherry, Manipur, Madhya Pradesh, Lakshadweep Islands, Himachal Pradesh, Arunachal Pradesh, Tripura, Tamil Nadu, Uttarakhand, Kerala, Ladakh, Sikkim only ) & All other countries

Company Information

View Number

Member Since 10 Years
Nature of Business Manufacturer
GST No. 07AAICS6296D1Z2

View Company Details

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Colorwhite,white
ConditionNew
Applicationindoor
FeatureRust Proof
Country of OriginIndia
Brand Namerf connector house
Certificationiso
Warranty1 year

Part Number ST-DC-0738-INx Operating Frequency ( MHz ) 700-3800 Impedance ( Ohm ) 50 VSWR ≤1.25 Coupling (dB) 5 ± 0.8 6 ± 0.8 7 ± 0.9 10 ± 1.0 15 ± 1 20 ± 1.2 Insertion Loss (dB) ≤2.05 ≤1.60 ≤1.40 ≤0.96 ≤0.5 ≤0.22 Isolation (dB) ≥23 ≥24 ≥25 ≥28 ≥33 ≥38 IM3 (dBc @ 2×43dBm) -150 Application Indoor Operating Temperature ( ℃ ) -40 ~ + 80 Interface N Female Handling Power (Watt, max) 300 Peak Power (Watt, max) 1200 Dimension (mm) 125 × 31 × 20 (excludes connector) ) 1200 Dimension (mm) 125 × 31 × 20 (excludes connector) Net Weight (g) 180 ± 20 Packing Dimensions (mm ) 160 × 65 × 30 Packing Carton Size (mm) 350 × 340 × 170 ROHS Compliance Yes Revision R1 Date 11-Oct -2022
